Product Details

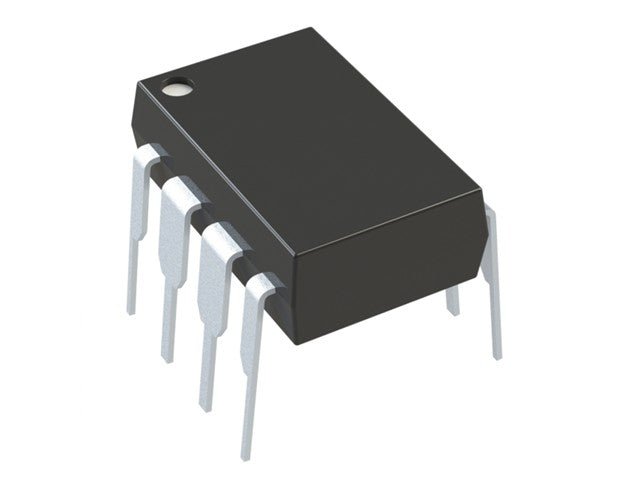

OP AMP Dual Auto-Zeroed with Caps 8P
Specifications
|
Amplifier Type
|
Zero-Drift |
|
Number of Circuits
|
2
|
|
Slew Rate
|
2.5V/µs
|
|
Gain Bandwidth Product
|
1.5 MHz
|
|
Current - Input Bias
|
90 pA
|
|
Voltage - Input Offset
|
5 µV
|
|
Current - Supply
|
650µA (x2 Channels)
|
|
Current - Output / Channel
|
10 mA
|
|
Voltage - Supply Span (Min)
|
7 V
|
|
Voltage - Supply Span (Max)
|
16 V
|
|
Operating Temperature
|
0°C ~ 70°C
|
|
Mounting Type
|
Through Hole
|
|
Package / Case
|
8-DIP (0.300", 7.62mm)
|
|
Supplier Device Package
|
8-PDIP
|
Additional Information
| Device | IC |
