Product Details

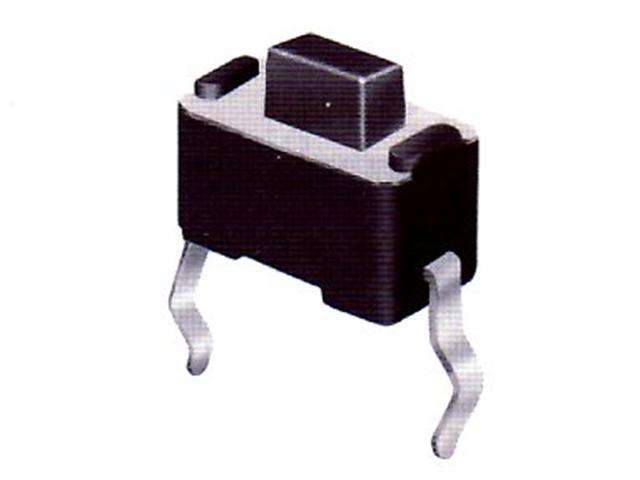

Tactile Switch • Form : 1A - SPST (NO)/2Termn • 50mA-12VDC • 180gf • PCB • 6x3.5mm , Lever : 4.5mm
Overview
Features
Specification
Â
| Transition Style | Momentary |
| Actuator Style | Push Button |
| Actuating Force | 180gf |
| Termination | PCB |
| Switch Circuit | 1A - SPST (NO)/2Termn |
| Electrical Rating | 50mA-12VDC |
| No. of Pins | 2Pin |
| Case Length | 6mm |
| Case Width | 3.5mm |
| Lever Size | 4.5mm |
