Product Details
Solar Hybrid Inverter, 5KW,48V. Built in MPPT. Max PV Open Circuit Voltage 500VDC, Max PV Array MPPT Voltage 120~450VDC, Max Solar MPPT Charge Current 80A, Rated Output POWER5000 (W), Battery Type, Lead Acid, Gel AGM or Lithium Battery

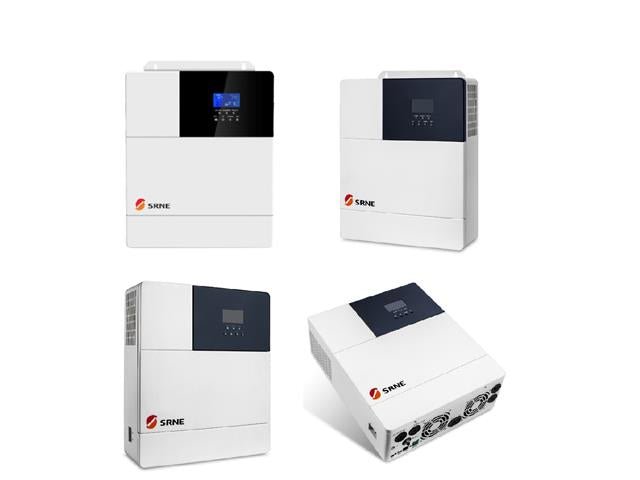

Solar Hybrid Inverter
Overview

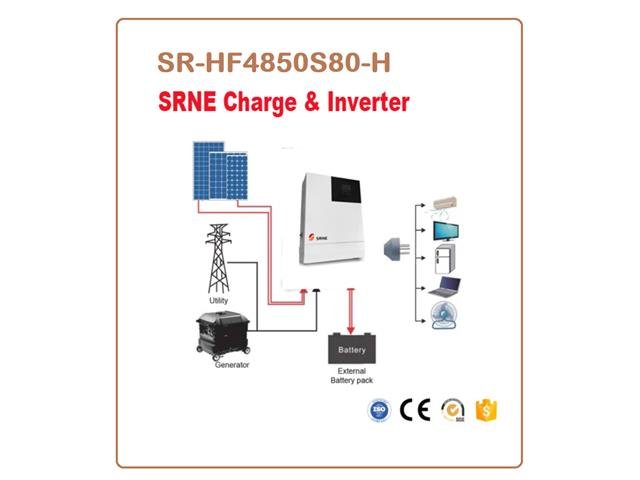

HF48-H series is a new all-in-one hybrid solar charge inverter, which integrates solar energy storage &means charging energy storage and AC sine wave output. Thanks to DSP control and advanced controlalgorithm, it has high response speed, high reliability and high industrial standard.
Feature
- Adopt full digital voltage and current double closed-loop control and advanced SPWM technology to output pure sine wave.
- Two output modes, i.e. mains bypass and inverter output can achieve uninterrupted power supply function.
- Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.
- Advanced MPPT technology, with efficiency up to 99.9%.
- Wide MPPT voltage range, 120-450vdc.
- There is no commercial power or battery, and the solar energy has independent loading function.
- With function of activating lithium battery with solar energy and AC mains power, it supports connection of lead-acid battery and lithium battery.
- LCD screen design and 3 LED indicator lights dynamically display system data and operation states.
- ON/OFF rocker switch can control AC output.
- With power saving mode function, it can reduce no-load loss.
- Intelligent adjustable speed fan is adopted for efficient heat dissipation and extended system life.
- Possessing multiple protection functions and 360° comprehensive protection.
- Possessing complete short circuit protection, overvoltage and under voltage protection, overload protection, back filling protection, etc.
Downloads
Additional Information
| Device | Inverter |
| Type | Solar | Hybrid |
