Product Details
PWM Solar Controller 30A, 12V/24V, Dual USB Output 5V 2A, Supports Lead Acid, Gel & Lithium Batteries. Has a flexibility to set the load to work during the day or night.it is widely applied to Off-grid system which needs High Reliability

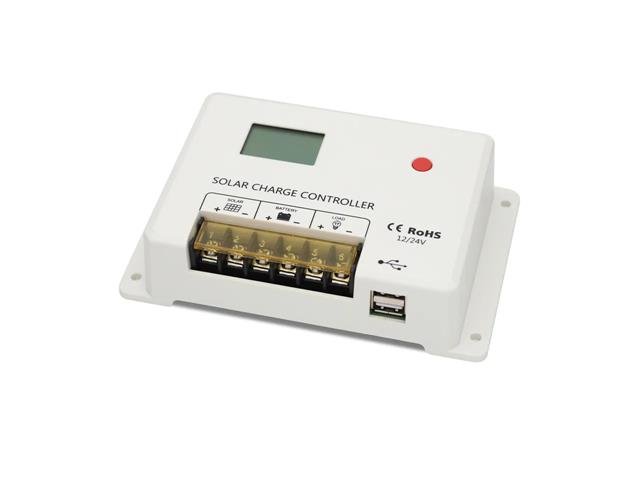

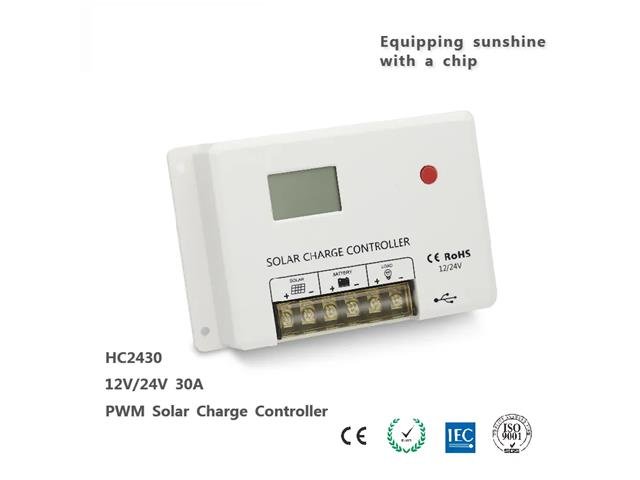

PWM Solar Controller 30A
Feature
- 32-bit high-speed master control chip.
- Large-screen LCD for display, charge and discharge parameters adjustable , Allow selection of multiple battery types, with a flexibility to set the load to work during the day or night..
- Complete multi-stage PWM charge management.
- Built-in reverse connection protection, open-circuit protection, high temperature protection, over-current/short-circuit protection (optional), which are all self-recovery type, with no damage to the controller.
- Double MOS anti-backflow circuit, ultra-low heat generation.
- Lithium battery activation available.
- Dual USB output, maximum current up to 2A, supporting high current charging of Iphone, Ipad and Android mobile phones and other devices
Specifications
- Rated current : 30A
- System voltage : Automatic 12V 24V
- Maximum PV input voltage : 50V
- USB output : 5V 2A
- Battery support : AGM SLD GEL FLD Lithium
Downloads
Additional Information
| Device | Solar Controller |
| Type | PWM | 30A |
