Product Details

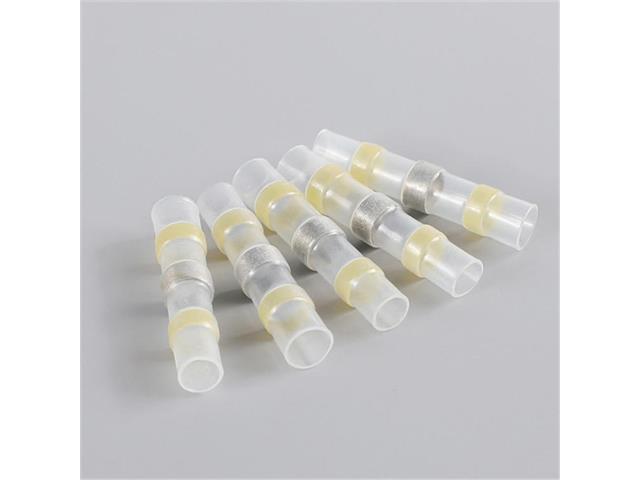

Solder Butt Connector Yellow 4-6mm Pack of 5
Solder Butt Connector Yellow
Features
- Waterproof and heat shrinkable, easy to operate, fast dissolving at low temperature, strong conductivity
- Both ends of the outer tube contain colored hot melt adhesive, waterproof, no leakage, safe to use
- 100% new high quality.
- Shape and color: same as the picture
- Shrinkage Ratio 2:1
- An easy One-Step Wire Connections.
- Easy Identification: Color coded connector tubing.
- Polyolefin heat shrink butt connectors improve Pullout Strength.
- High-quality wire connectors in Seal, Strain Relief, Cable Check and Insulation.
- Melted Solder ensures wires Strongly Connected and avoids wires slipping out from the terminal.
Specifications

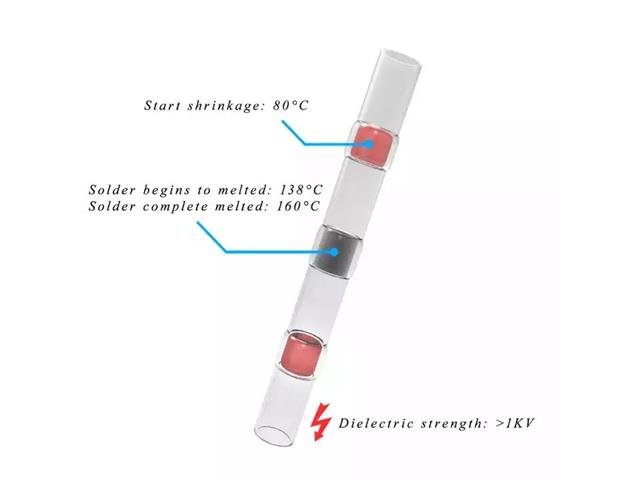

- Operating Temp : -55℃-125℃
- Start Shrinking Temp : 80℃
- Solder Start Melting Temp : 138℃
- Solder Complete Dissolution Temp : 160℃
- Shrink Temp : >160℃
- Dielectric Strength : 1KV
- Protection class : IP67
Downloads
Additional Information
| Device | Connector |
| Type | Solder Butt | Yellow |
