Product Details

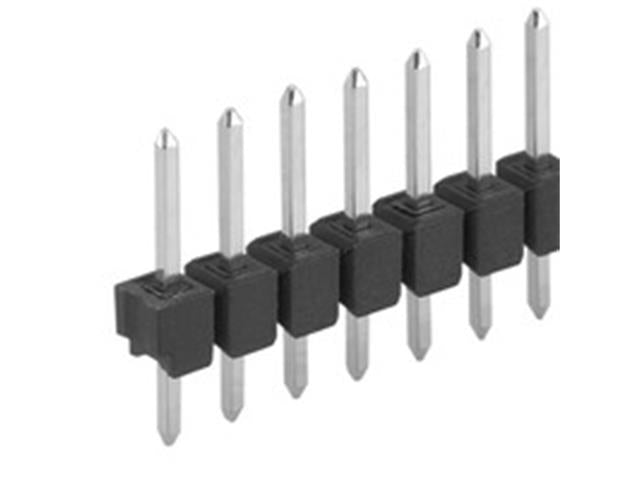

Header Unshrouded Solder 1 Contact Fischer Elektronik SL 11 124 01 G
Unshrouded Solder 1 Contact Header
Specifications
- Grid : 2.54 mm
- No. of Contacts : 1 - 36
- Contact Material : CuSn alloy
- Surface of Contact : Selective Gold-Plated Gold-Plated Tin-Plated
- Surface Contact / Contact Sleeve : Ni+≥0.2µm Au Ni+4...6µm Sn
- Version : Standard
- Volume Resistance : ≤5 mΩ
- Nominal Current : 3 A
- Nominal Voltage : 250 V AC
- Test Voltage : 2000 V
- Insulating Body Material : PA 4.6. GF
- Temperature Range : -40°C + 163°C (260°C/10 s)
- Class of Inflammability : UL 94 V-0
- Specific Insulation Resistance : >10.07.0 Ω·m
- Reflow Solderable : Yes
Additional Information
| Device | Header |
| Type | Unshrouded | Solder | 1 Contact |
