Product Details
SIGLENT Digital Storage Oscilloscope 350MHz 4CH, 10.1” TFT LCD TOUCH SCREEN , RES:1024X600 , 2 GSa/s (INTERLEAVING MODE) , 1 GSa/s (Non-Interleaving Mode), External Trigger, USB2.0 HOSTx2, USB2.0 Device, LAN, AUX O/P (TRIG OUT,PASS/FAIL)
Digital Storage Oscilloscope
Overview

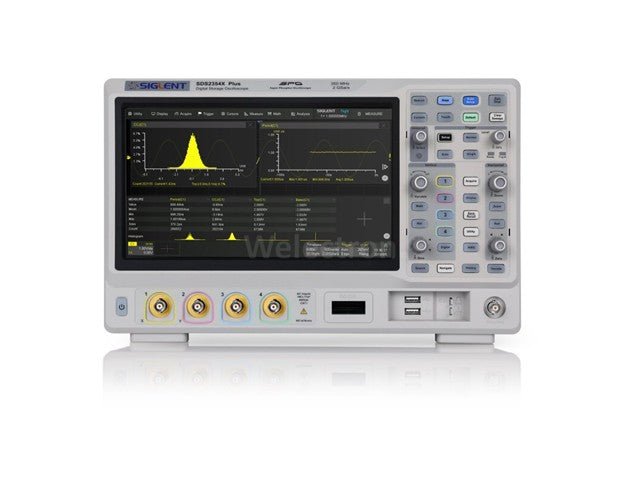

Siglent SDS2354X Plus 4 Channel 350MHz 2 GSa/s osciloscope is the 3rd Generation of their 2000 series of oscilloscopes. Five years after Siglent introducuced the very successful SDS2000X. Siglent has continued to implement customer feedback and now presents SDS2000X Plus series. Designed to impress, the X Plus has a feature-rich standard configuration and options that make it a powerful and flexible tool for all general purpose tasks in the lab.
Specifications
| Model: | SDS2354X Plus |
|---|---|
| Analog channels | 4 + EXT |
| Bandwidth | 350 MHz, (upgradable to 500 MHz) |
| Sample rate (Max.) | 2 GSa/s (interleaving mode), 1 GSa/s (non-interleaving mode) |
| Memory depth mode (Max.) | 2 GSa/s (interleaving mode ) 1 GSa/s (non-interleaving) |
| Waveform capture rate Mode (Max.) | Normal : 120,000 wfm/s; Sequence: 500,000 wfm/s |
| Vertical resolution | 8-bit. 10-bit mode (with typical 100 MHz bandwidth) |
| Trigger type | Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Video and Serial |
| Measurement | More than 50 parameters, supports statistics with histogram and trend |
| Math | 2 traces, 2 Mpts FFT, +, -, x, ÷, d/dt, ∫dt, √, average, ERES, and formula editor |
| Data processing and analysis tools | Search, Navigate, History, Mask test, Bode plot, Power Analysis (optional) and Counter |

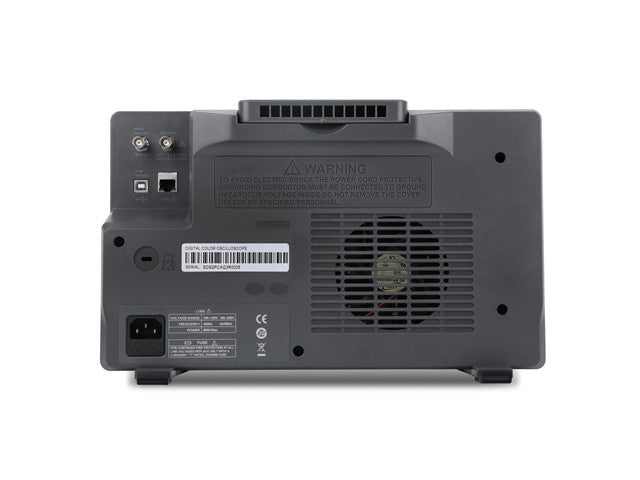

| Interface | USB 2.0 Host x2, USB 2.0 Device, LAN, External trigger, Auxiliary output (TRIG OUT, PASS/FAIL) |
| Probe (standard) | SP2035A, 350 MHz, 1 probe supplied for each channel |
| Display | 10.1” TFT-LCD with capacitive touch screen (1024x600) |
Downloads
Additional Information
| Device | Oscilloscope |
| Type | Digital Storage |
