Product Details

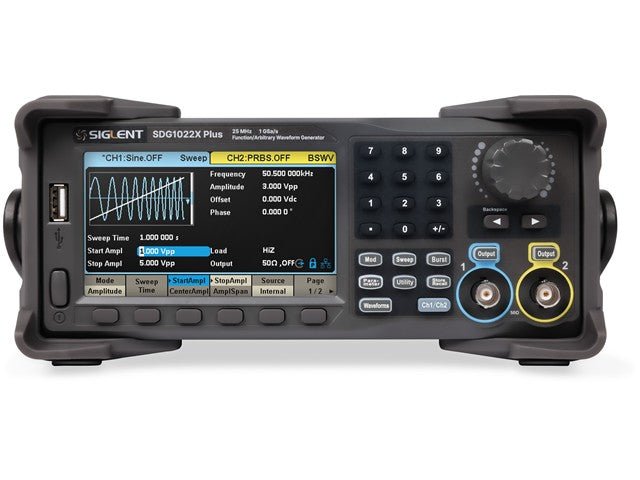

SIGLENT Function / Arbitrary Waveform Generator 2CH 25MHZ 1GSa/s, 8Mpts/CH, 16bits, 4.3inch TFT-LCD (480×272×RGB) Sequence Playback Function, Max Amplitude:±10V, 260.3×107.2×295.7mm, 100~240 Vrms (±10%) 50/60Hz, 4.4kg
Function / Arbitrary Waveform Generator
Overview
SIGLENT’s SDG1022X Plus dual-channel function/arbitrary waveform generator, with a maximum bandwidth of 25 MHz, has excellent sampling system indicators of 1GSa/s sampling rate and 16-bit vertical resolution.
Specifications
- Max Output Frequency : 25 MHz
- Dual channel, maximum output amplitude : 20 Vpp
- 1 GSa/s Sampling rate : 16-bit vertical resolution
- Arbitrary wave length : 8 Mpts/CH
- Multi-pulse output function
- Supports PRBS up to : 40 Mbps
- Weight : 9.7 lbs
- Dimensions : 10.25 × 11.64 × 4.22 in
Downloads
Additional Information
| Device | Generator |
| Type | Function / Arbitrary | Waveform |
