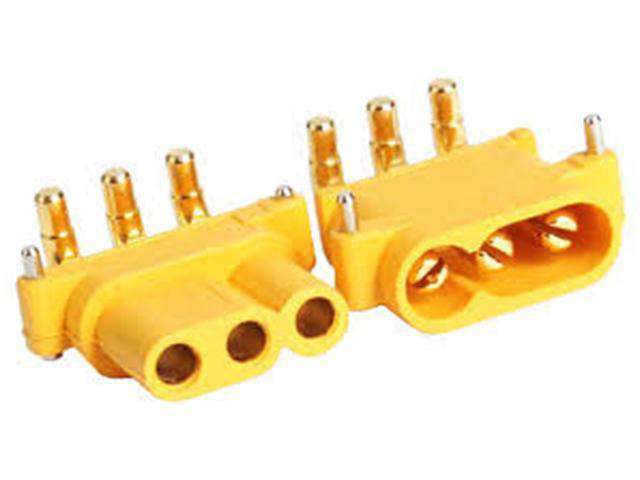

MR30PW Battery Connector 3pole 30A - PCB Right Angle Polarized Male/Female 2MM Gold Plated Bullet Terminals
Overview
Features
- Suitable for connecting ESCs and motors
- Assistive weld foot, more stable
- 90 degree foot, suitable for welding on circuit board
- For Board to Board Applications. Also mates with MR30 for Wire to PCB Applications
Specification
- Body Material and Surface Plating : Brass and gold plated
- Insulation Material : PA66
- Original Internal Resistance : 0.8MΩ
- 500 Times Internal Resistance : 0.85MΩ
- Max. Continuous Current : 30A (within 30 minitues)
- Max. Instantaneous Current : 40A (within 1 minitues)
- Recommended Cable Spec : 18AWG 2.8mm diameter
- Recommended Soldering Spec : 400° C/3S
- Weight : 1.2g/pcs
- Insulation Degree : UL94V-0
- Machine Life : 3000 Times
