Product Details
Official Raspberry PI 5B PSU 5.1V 5A 27W PD, (EU) 2Pin Plug with 1.2M Lead USB-C, Output: 5.1V/5A - 9V/3A - 12V/2.25A - 15V/1.8A PD (Power Delivery) Black, 100~240VAC

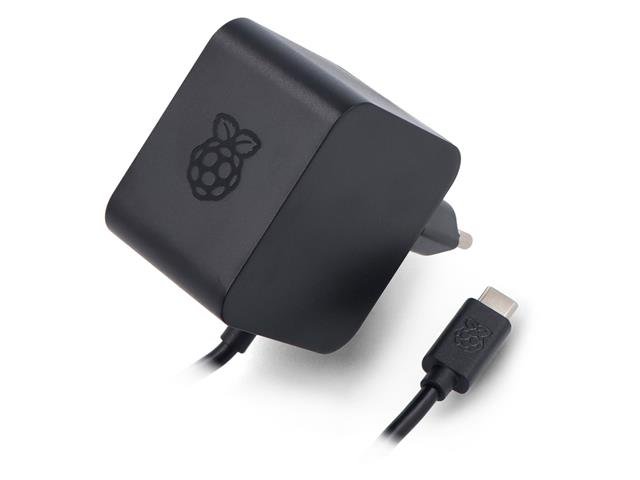

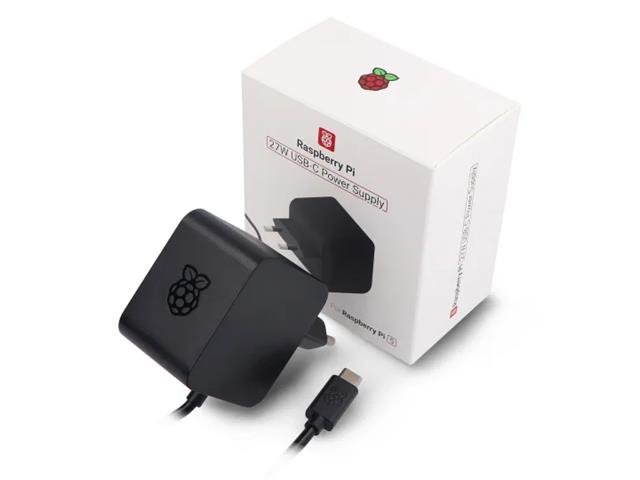

Official Raspberry PI 5B Power Supply Unit
Overview
The new 27W USB-C PD (Power Delivery) Power Supply will deliver a maximum of 5.1V, 5A enabling the Raspberry Pi 5 to power a wider range of peripherals.
The total power drawn from the four USB ports on Raspberry Pi 5 is limited by default to a nominal 600mA; this limit is automatically increased to a nominal 1.6A when the USB-C PD Power Supply is detected.
The USB-C PD Power Supply is also capable of delivering 3A @ 9V, 2.25A @ 12V, and 1.8A @ 15V to PD-compatible products, making it a good cost-effective power supply for many general-purpose, non-Raspberry Pi use cases.
Specifications
- Input : 100-240VAC
- Output : 5A @ 5.1V, 3A @ 9V, 2.25A @ 12V, 1.8A @ 15V
- Connector : USB-C
- Cable : 1.2m, 18awg
- Colours : White, black
Additional Information
| Device | Power Supply Unit |
| Type | Official Raspberry PI | 5B |
