Product Details

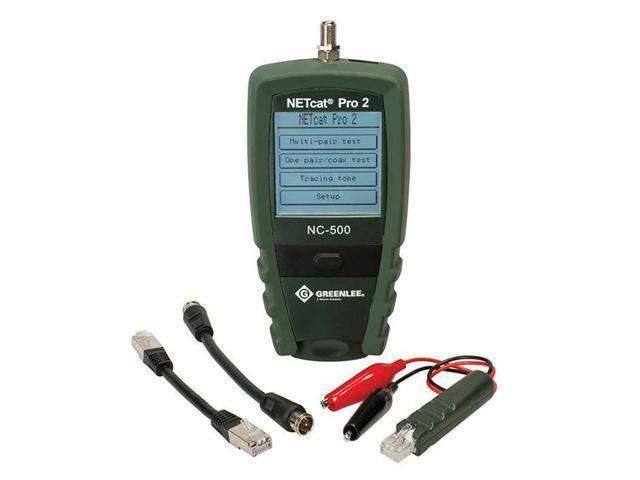

Micro Digital Voice Data and Video Wiring Tester
Overview
Features
- Test and troubleshoot telephone, data and coax wiring
- NETcat Pro 2 New Features:-
- Gigabit device capability detection (still detects 10 baseT and 100 baseT too)
- Cable type, velocity of propagation library, user editable
- Power over Ethernet (PoE) detection
- Memo pad
- Detect split pairs, short circuits, broken and crossed wires
- Step TDR technology shows length to open or short of all pairs
- Test shielded twisted-pair(STP), unshielded twisted-pair (UTP) & coaxial cables
- Test patch cords and remote jacks
- Touch-screen control, included stylus slots into main unit
- Large icons ensure easy use with your finger too
- Large 3 IN (76mm) backlit high-contrast (user adjustable) monochrome display is highly visible in dark or brightly lit areas
- Remote test and ID unit stores in base of main unit
- Can identify up to 8 remote test ID units (7 extra available in NC-510 accessory kit along with carrying case)
- Tone generator with four selectable precision frequency tones, compatible with Greenlee advanced digital signal processing probes
- Operates on single 9V battery with low battery indication
Specification
- Accessory : NC-510 NETcat Pro 2 AccessoryKit W/Carry Case
- Accuracy to OpenShort : Plus Or Minus 4 PCT Or 2.000 FT (0.600 MR) Whichever Is Greater
- Application : To Test And Troubleshoot Telephone, Data And Coax Wiring
- Backlight : White LED
- Battery : 9 V Alkaline Battery (PP3)
- Buttons : LCD Touch-Screen, Single Momentary Contact Push Button
- Depth : 6.700 IN
- Display LCD : Dot Pixels: 128 X 128 Dots
- Includes :
- Netcat Pro 2 Main Unit WithStylus
- Removable Remote Jack And Patch Lead Test And Id Unit
- Twisted-Pair (Modular Rj45), Coax (F) And Alligator ClipTest Cords
- 9V Alkaline Battery
- Interface Connections : RJ45 Shielded Jacks F-Type Threaded Female Coaxial Connectors
- Length : 3.300 IN
- Remote Identifier : 2000.000 FT
- Resolution : 1.000 FT (0.300 MR)
- StorageOperatingTemperature : -20 To 70 DEG C0 - 50 DEG C
- Sub Brand : NETcat
- TDR Calibration :
- User Selectable Based On A Known Cable Length
- 40 PCT To 100 PCT In StepsOf 1 PCT
- TDR Range : 0 - 2000 FT
- Type : 2 Digital VDV Wiring
- Weight : 0.450 LB (200.000 GM)
- Width : 1.400 IN
- Wiremap : 358.000 FT (100.000 MR)
