Product Details

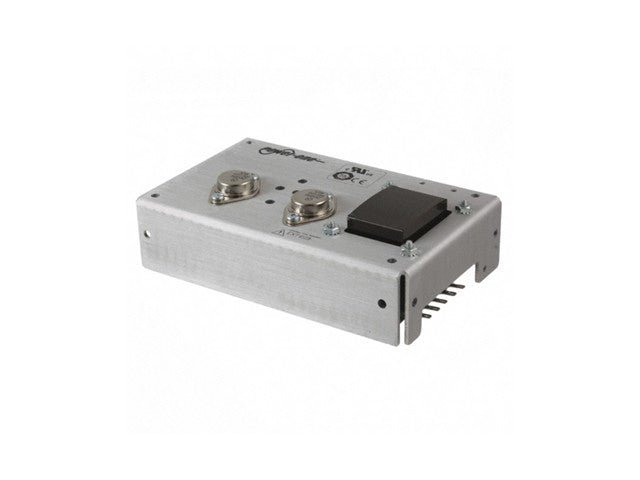

PSU 5V/2A 12V-15V/0.4-0,4A -12-15V/0,4A
PSU 5V/2A
Specifications
- Number of Outputs: 3
- Voltage – Input: 100, 120, 220, 230, 240 VAC
- Voltage - Output 1: 5V
- Voltage - Output 2: 12V
- Voltage - Output 3: -12V
- Current - Output 1: 2 A
- Current - Output 2: 400 mA
- Current - Output 3: 400 mA
- Power (Watts): 16W
- Applications: ITE (Commercial)
- Voltage – Isolation: 4.242 kV
- Efficiency: 45%
- Operating Temperature: 0°C ~ 50°C
- Features: Adjustable Output, Remote Sense
- Mounting Type: Chassis Mount
- Size / Dimension: 6.50" L x 4.00" W x 2.10" H (165.1mm x 101.6mm x 53.3mm)
- Approval Agency: CE, CSA, UL
- Standard Number: 60950-1; 62368-1
Downloads
Additional Information
| Device | Power Supply |
| Type | PSU | 5V/2A |
