Product Details

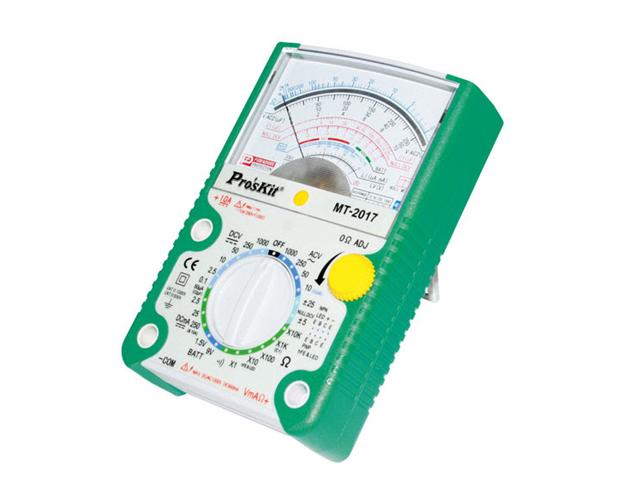

Protective Function Analog Multimeter
Protective Function Analog Multimeter
Features
- Complied with 2008 CE safety standard

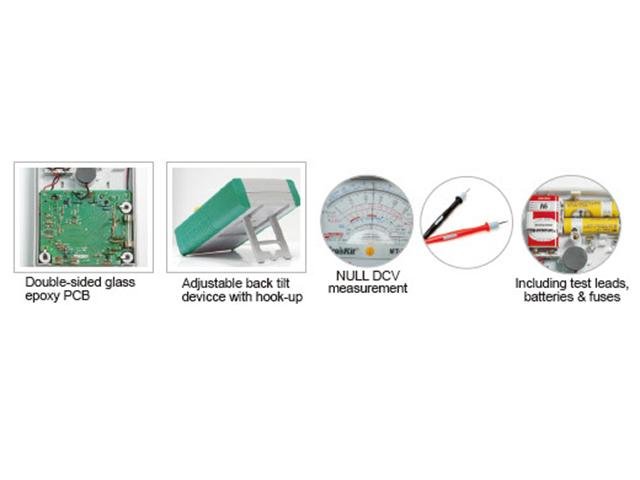

- Double-sided glass epoxy PCB
- Mirrored Aluminum dial plate
- 20kΩ/V DC & 9,kΩ/V AC input sensitivity
- Overload and mis-used protection
- Adjustable back tilt device with hook-up design
- Robust protective holster alongside
- Resistance, Current & Voltage measurements
- 10 Amp DC Range, Transistor hFE Test
- Continuity Buzzer and Battery Test
- Zero-center meter (Null)
- Test leads, batteries, fuse and user’s manual included
- Ideal for using in the fields of lab, school,
- home applications and more
Specifications
- Front Panel Controls : Range selector switch with “OFFâ€position, 0Ω adjust knob
- Power : 1.5V AA x 2pcs and 9V(NEDA1604) x 1pcs
- Movement and Indicator Protection : 0.5A/250V & 10A/250V
- Dimensions : 160(L) x 105(W) x 40(H) mm
- Weight : 390g apporx
- DCV : 0-0.1-2.5-10-50-250-1000V
- Null DCV : DC±-5V, ±25V
- ACV : 0-10-50-250-1000V
- DCA : 0-0.05-2.5-25-250 mA, 10A
- Resistance : 1 / 10 / 100 /1K / 10K?
- Capacitance : 0.025-0.25-25uF(C2), 2000uF(C1)
- Battery Check : 0 ~ 1.5V: GOOD - ? – BAD, 0 ~ 9V: GOOD - ? – BAD
- Transistor Check : hFE: 0-1000
- Decibel : -22 dB ~ + 62 dB (0dB=1mW at 600?)
- Continuity Check : Beeper sounding under 200 Ohm
Additional Information
| Device | Multimeter |
| Type | Protective | Function | Analog |
| Highlights | With Null DCV, Capacitance measurement |
