Product Details
SPECTRA 6000 8 ZONE PANEL EXP TO 32 ZONE
Overview
Features

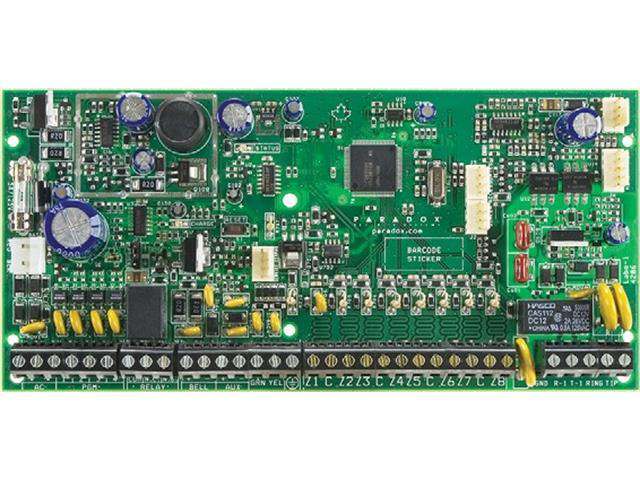

SP6000: 8 to 32-Zone Control Panel
- 8 zone inputs or 16 with zone doubling; expandable to 32 zones
- Supports REM3, two-way communication (requires RTX3, V1.31 or higher)
- 2 (+ 2 optional) on-board PGM outputs, positive or negative triggering
- 1 alarm relay (optional)
- 1.5A switching power supply
- Supports RX1 Wireless Receiver and RTX3 Wireless Expansion Module• Supports StayD
- 4-wire expansion bus (connect up to 15 keypads)
- Supports up to 16 PGMs
- 2 partitions (1 partition when used with K636 keypad)
- 32 user codes
- Supports GPRS and GSM Module (PCS series), IP Module (IP100), and Voice Module (VDMP3)
- 1.1A switching power supply
- In-field firmware upgradable via 307USB
- Menu-driven programming for the Installer, Master, and Maintenance codes
- Phone #s: 3 for monitoring station, 5 for personal dialing, and 1 for pager reporting
- Patented 2-optocoupler dialer circuit – the most reliable dialer in the industry
- Automatic Daylight Savings Time feature
- Push-button software reset (reset to default values and restart)
- Direct connect at 9.6K baud with BabyWare
- 256 events buffered
- Supports REM3, one-way communication only (requires RTX3, V1.31 or higher)
- Supports RX1 Wireless Receiver, as well as RTX3 Wireless Expansion Module
- Fits in 20 x 25.5 x 7.6 cm (8 x 10 x 3 in.) and 28 x 28 x 7.6 cm (11 x 11 x 3 in.) metal boxes
