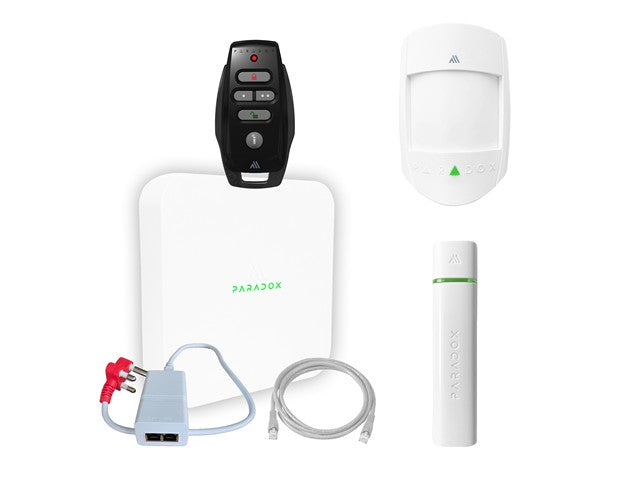

PARADOX M25 WiFi Kit (Includes:1xM25 Console WiFi 868MHz (PA6819) - 1xPoE Adaptor 52V30W+ Power Cord (PA6003K) - 1x2M CAT5E Patch Lead (PA6005) - 1xPMD3M Analog Single-Optic PIR (PA6702) - 1xDCT2M Door/Window Magnetic Contact (PA6708) - 1xREM25M Remote (P
M25 WiFi Kit
Features
- Hybrid wireless console
- Security, Video Verification, Access Control, programmable outputs
- 3 communication channels - Ethernet, Wi-Fi, LTE
- PoE, 10W power consumption
- 10 partitions, 128 users, 100 zones, 128 remotes
- GFSK wireless, 914 MHz or 868 MHz, 75 nodes per system
- Auto-lean wireless and Ethernet devices
- Temperature monitoring and control
- Safe direct reporting to CMS up to 4 channels without cloud dependency
- User-friendly, simple, mobile application
- Certifications: CE, EN 50131-3, EN 50131-6, EN 50136-1, EN 50136-2, EN 50131-5-3, FCC 15.247 Grade 2, Class II
Specifications
| Power Supply |
PoE, 10W max |
| Battery |
3.7V Lithium-ion battery, 5000 mAh |
| Battery Charging Temperature Range |
0°C to +40°C (32°F to 104°F) |
| Battery Backup Time |
26H on Ethernet, 24H on Wi-Fi, 20H on LTE |
| Ethernet / Wi-Fi |
Built-in Wi-Fi – 2.4 GHz B/G/N |
| LTE |
Built-in (LTE Model), main channel or backup |
| Users |
128 total; includes one owner, masters, users, guests, and maintenance |
| BlueEye Users Access |
Optional, enabled by owner or master per user |
| JPEGs for User and Partition |
Yes, from gallery or camera |
| Remotes |
128 maximum per system, up to four per user |
| Wireless Devices |
75 per system |
| Adding Devices |
Via auto-learn feature (wireless and Ethernet), QR scan, or manual serial number input for pre-programming |
| Wireless Repeaters (via Ethernet) |
Maximum of 4 per system |
| Programmable Outputs (PGMs) |
Up to 48 with wireless expanders; security levels include regular, restricted, or installer-only |
| PGM Activation |
Controlled by manual activation, schedule, system events, sunset/sunrise, or temperature reading |
| PGM Status Verification |
PGM status with zone verification and timer-based error display per PGM |
| Ethernet Expansion Devices |
Up to 45 repeaters, keypads, cameras, and access modules |
| Video Verification |
Up to 16 cameras (available starting May 2025) |
| Access Control |
Up to 16 doors (available starting July 2025) |
| Arming Options |
Stay, Sleep, and Full Arm |
| Wireless Frequency Range |
868 (865.05 - 867.95) MHz or 914 (902.25 - 927.55) MHz (frequency may vary by country) |
| Modulation Type |
GFSK with frequency and encryption hopping |
| Wireless Transmission Power |
868 MHz band (+14 dBm), 914 MHz band (+22 dBm), coin battery devices limited to +14 dBm |
| Installation |
By registered installer with Paradox Service Company ID (PSCI) via BlueEye or Service Company Portal |
| Service Company Access |
Permanent access or as granted by System Owner |
| Service Company Lock |
Available; enables automatically when the Service Company subscribes to the Swan service |
| Service Company Portal |
Available for all registered Service Companies/Installers with Paradox Service Company ID (PSCI) |
| Temperature Display and Control |
Site and area temperature display; temperature activation for PGM (cool/heat); custom alerts via push notification and BlueEye message center |
| Cloud Services |
Paradox Swan 4G (subscription required) |
| Reporting |
Up to four receivers, two channels with backup; up to three transmission channels: Ethernet, Wi-Fi, and LTE |
| Programming |
Via BlueEye application or PC software |
| Operating Temperature |
-25°C to +55°C (-13°F to 131°F) |
| Dimensions (W × H × D) |
12.4 × 12.4 × 3.55 cm (4.89 × 4.89 × 1.4 in.) |
