Product Details

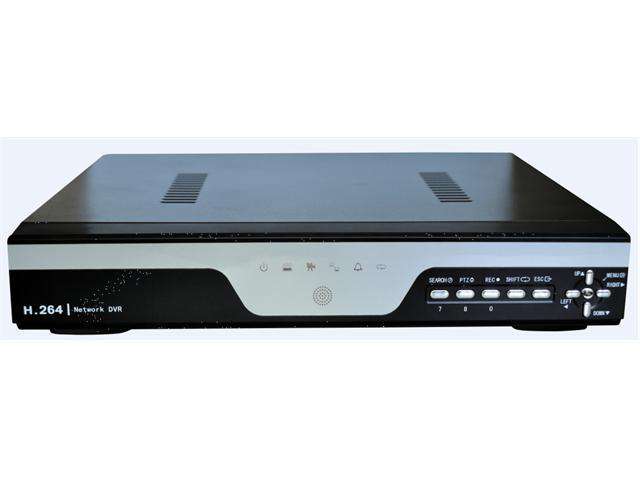

24 ch 1080P Network Video Recorder with VGA and HDMI Output takes 2 SATA Hard Drive (not included) and supports 24 ch 1080P/32 ch 960P Recording
Overview
Features
- Use the standard H.264 video compression format stream lower,high quality,longer recording time, taking up less bandwidth resources*
- GUI OSD interface,USB Mouse controller,more intuitive,easier to use for user-friendly
- ONVIF standard protocol(Onvif agreement with standard)can be connected with the front –end IPC protocol support onvif.
- Support Strong cloud service,one step to do remote control easily
- Support 24CH 1080P/32CH 960P recording.
- Dual-stream design,network remote view effects and local recording effects parameters can be set separately,independently of each other.
- Hexaplex operation simultaneously:Preview,recording,playback,backup,network live,mobile phone view
- Multiple record mode:Auto continuous, timing recording, motion detection, trigger alarm recording mode
- Recording playback support:Normal play, Speed play, Fast back play, Manual single-frame slow play
- Support drag the progress bar can be targeted playback time directly
- Support Multiple channel playback (Support 4 CH 1080P/8CH 960P* playback simultaneously, each channel can be enlarge to full screen)
- Powerful net service:support IE browser(built -in)and sub-control software to monitor and manage network focused on multiple DVR
- Strong network function:support DHCP/PPPOE/FTP/DNS/DDNS/NTP/UPNP/EMAIL/IP authority/IP search, alarm center, etc, complete Enclosure (WEB/CMS/SDK), to easily achieve interconnection.
- Supports remote surveillance up to 10 users simultaneously via the Internet Explorer web browser
- Supports Multiple backup mode : USB flash drive, USB hard disk and network backup
- Support pre-alarm recording (before 10 sec), not to loose any suspicious screen
- Support 2 SATA HDD
- Support Mobile phone remote view by Symbian;Windows Mobile;Android system;Iphone;Blackberry.
- Support High-Definition VGA and HDMI output.
Specification
- Video Compression Format : H.264
- Video Standard : NTSC / PAL
- GUI OSD : YES
- Video Input : 24CH 1080P / 32CH 960P
- Video Output : 1CH VGA &HDMI output
- Audio Intercom : YES
- Image Quality Setting : Supper Best,Well,Very good,Well,Good Common
- Hard Disk Storage : Support two SATA HDD,
- Multiplex Operation : Live display/record/playback/backup/network transmit
- Recording Mode : Manual/Timer/Motion detection/alarm
- Playback Mode : Multiple slow and rapid play speeds,manual and single-frame play modes,and support of drag the sliding bar to set.
- Backup Device : USB flash drive,USB hard disk,USB and network backup
- Pre-alarm Recording : Recording for 10 seconds before alarming
- Network Protocol : TCP/IP/PPPOE/DDNS/FTP/NTP and UPNP
- Ethernet remote view : Support remote surveillance up to 10 users simultaneously
- CMS software : YES
- Mobilephone View : YES
- Electronic zoom : YES
- VGA Interface : YES
- Log record function : YES
- Image Tour : YES
- IR Remote control : YES
- Video Loss Detection : YES
- Video Adjustable : Hue /Saturation /Contrast /Brightness adjust
- USB Mouse : YES
- PTZ interface : 1CH 485
- Power Source : DC 12V
- Key Lock(Password Protection) : YES
- Power-down recovery function : YES
- Size(mm) : 325(W) x 52(H) x 230(D)
