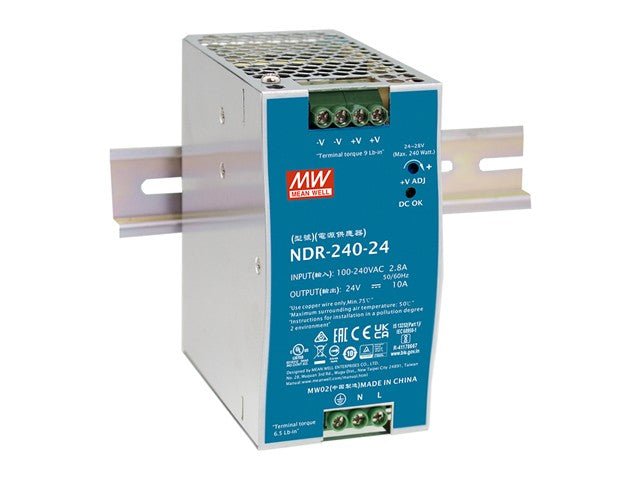

DIN Rail Metal Case Switch Mode Power Supply With Active PFC. Input: 90 ~ 264VAC/127 - 370VDC. Output 24VDC @ 10A. 3KVAC Isolation (LI240-10B24) (DIN Rail Metal 24V - 10A)
DIN Rail Metal Case Switch Mode Power Supply
Specifications
- Model: NDR-240-24
- Manufacturer: MEAN WELL
- Series: NDR-240
- Type: AC/DC DIN-Rail Switching Power Supply
- Rated Power: 240 W
- AC Input Voltage: 90 – 264 VAC
- DC Input Voltage: 127 – 370 VDC
- Input Frequency: 47 – 63 Hz
- Output Voltage: 24 V DC
- Output Voltage Adjustment Range: 24 – 28 V DC
- Output Current: 10 A
- Efficiency (Typical): 88.5 %
- Inrush Current: Cold start ≤ 40 A
- Ripple & Noise: ≤ 150 mVp-p
- Protection Functions: Short circuit, overload, over-voltage, over-temperature
- Cooling Method: Free air convection
- Mounting Type: DIN Rail TS-35 (7.5 / 15 mm)
- Operating Temperature: –20 °C to +70 °C (with derating above 50 °C)
- Operating Humidity: 20 – 90 % RH (non-condensing)
- Isolation Voltage: 3 kVAC (Input to Output)
- Withstand Voltage: 2 kVAC (Input to Ground), 1 kVAC (Output to Ground)
- Dimensions (W × H × D): 63 × 125.2 × 113.5 mm
- Weight : Approx. 1.2 kg
- Housing: Metal
- Safety Standards: UL508, EN60950-1, EN62368-1
- EMC Standards: EN55032, EN61000-3-2, EN61000-6-2 / 6-4
- Warranty: 3 Years
