• Higher power density, more power output
• Wider input range, higher efficiency
• Ultra low noise, multiple configurable options
• High quality LCD with wide view

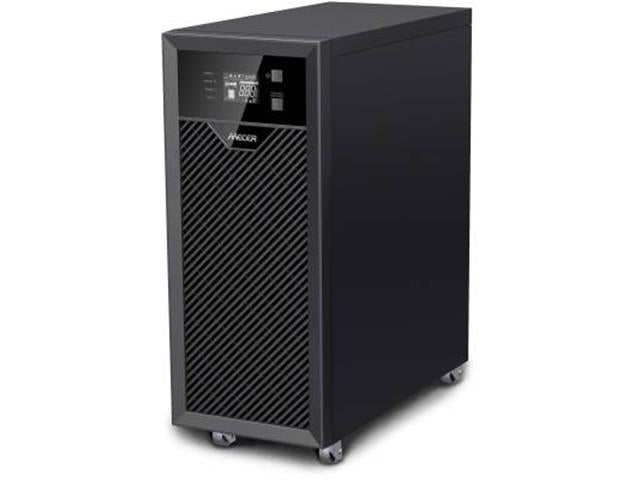

• Model : ME-10000-WPTV
• Dimensions W*D*H(mm) : 248 x 500 x616
• Weight(kg) : 62.1

Power

• Apparent Power(KVA) : 10KVA/
• Active power(KW) : 9KW

Mains

• Voltage range : 120Vac-275Vac(phase to phase)
• Current* :  52.6 A max
• Frequency range : 40Hz-70Hz
• Power factor : 0.99

Output

• Rating Voltage : 230Vac(±1%)
• Rating Current : 45A
• Frequency range : 50Hz x (1±1%); Follow main power in phase lock range
• Power factor : 0.9

Output Overload

• 105%-125%, load transfer to bypass mode after 10 min (0-30°C) or
• 1min(30-40°C);
• 125%-150%,load transfer to bypass mode after 30s;
• Over 150%, load transfer to bypass after 0.5s
• Load crest ratio : 3:1( max)
• THD : <2%( 100% Line load)

Enviromental and safety

• EMC Standard : EN IEC 62040-2:2018 / EN 62040-2:2006 / IEC 62040-2:2016
• Safety Standard : EN62040-1:2008+A1:2013
• Operation temperature : 0-40 °C
• Store temperature : -25°C to 55 °C
• Relative humidity : 20% to 90%
• Altitude : <1000m
• *The max current is under 176Vac input, full rating load and empty battery charging.
