Name: MC3302P
Brand: Communica
SKU: MC3302P
Price: 4.20 AED
Availability: InStock

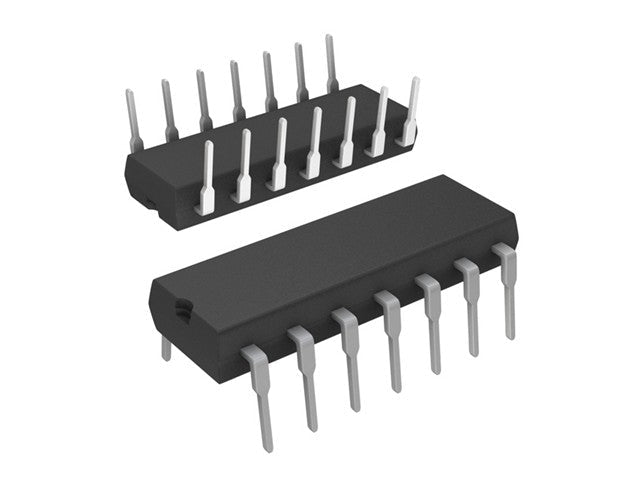

Comparator Quad Bipolar 14P

Specifications

Mounting Style:	Through Hole
Package/Case:	PDIP-14
Number of Channels:	4 Channel
Output Type:	Open Collector
Response Time:	1.3 us
Supply Voltage - Min:	3 V
Supply Voltage - Max:	30 V
Operating Supply Current:	2.5 mA
Output Current per Channel:	16 mA
Vos - Input Offset Voltage:	20 mV
Ib - Input Bias Current:	500 nA
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Pd - Power Dissipation:	1 W

Additional Information

Device
