Product Details

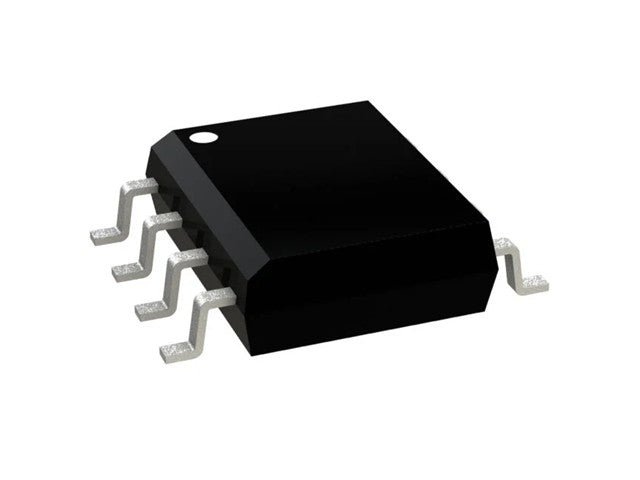

Hi Speed Lo Power Voltage Comparator SO8
Specifications
- Number of Elements: 1
- Output Type: TTL
- Voltage - Supply, Single/Dual (±): 5V ~ 10V, ±2.5V ~ 5V
- Voltage - Input Offset (Max): 4mV @ ±5V
- Current - Input Bias (Max): 10µA @ ±5V
- Current - Quiescent (Max): 4mA, 3mA, 1.5mA
- CMRR, PSRR (Typ): 82.5dB CMRR, 80dB PSRR
- Operating Temperature: 0°C ~ 70°C
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-SOIC
Downloads
Additional Information
| Device | IC |
