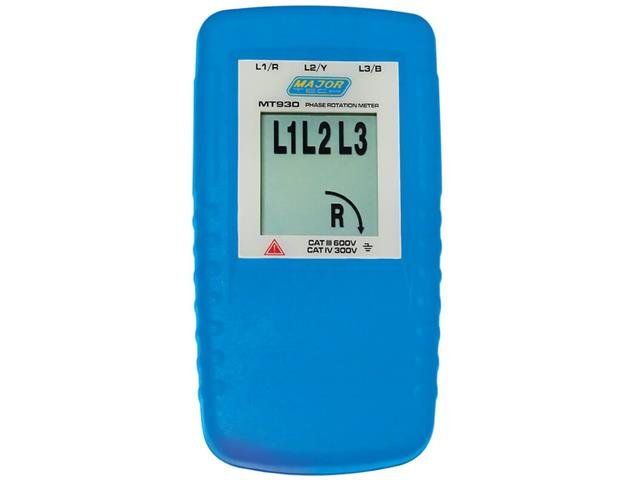

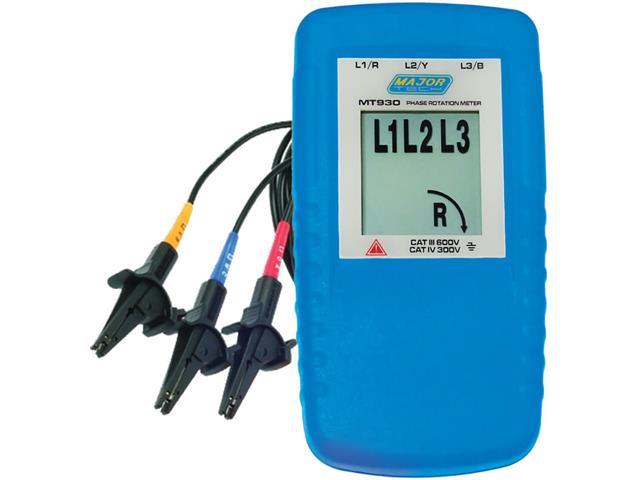

The MT930 is a Phase Rotation Meter that is compact and handheld that has a large LCD to indicate the phase presence and rotation. Once connected to a 3 Phase power system, the meter indicates the phase sequence by displaying its corresponding phase symbol on the LCD, as well as the rotation by arrows indicating a clockwise or anti-clockwise direction. The MT930 operates from 40VAC to 690VAC.

• Large LCD Display
• Phase rotation indication
• 3-Phase Indication
• Checks phase sequence and open phase simultaneously
• Double injection rubber housing
• Small lightweight and portable
• Can check a wide range of 3-phase power source from 40V to 690V AC
• Large size crocodile clips

Accessories:

• Set of large sized croc clips
• Instruction Manual

AC Voltage	40 to 690V
Clamp diameter range	20mm
Detection Method	LCD Display
Measuring Frequency	15 – 400Hz
Phase Rotation	Clock or Anti clock
Visual Indication	LED Indication
Colours	Red Yellow Blue
Casing	Over Moulded case
Weight	130g
Dimensions	130 x 69 x 32mm
Safety Specs	IEC61010-1 CAT III 600V
