Product Details

600A AC True RMS Clamp Meter

600A AC True RMS Clamp Meter

Overview

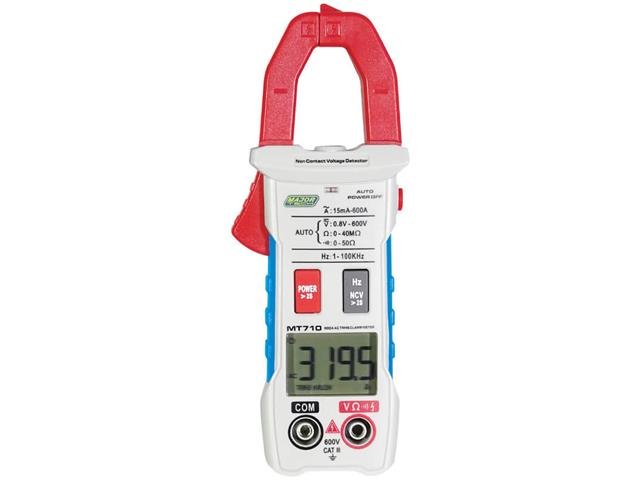

The MT710 is a CAT III 600V, 4000 count True RMS 600A AC digital clamp meter with indication on a large backlit LCD display, providing fast sampling time with high accuracy. The Smart mode, “AUTO”, is a function that automatically identifies DC voltage, AC voltage, Resistance and continuity and automatically displays the measurements. By pressing the NCV button continuously the LCD displays “EF” and will display “----“ when voltage is detected and the buzzer sounds. The meter measures 600V AC/DC, frequency, resistance measurements, plus Inrush current and Peak Voltage value. Other features include, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern compact housing ideal for electricians, HVAC technicians and students studying electrical.

Features

  • 4000 count backlit LCD display
  • Ø25mm Cable Clamp size
  • Smart Mode automatically identifies DCV, ACV, Resistance and continuity
  • Measurement of DC voltage and AC voltage up to 600V
  • INRUSH Current Measurements
  • NCV – Non-Contact Voltage Detector
  • Built-In Flashlight
  • Continuity buzzer
  • Peak Mode and Data Hold function
  • Auto Power Off

Specifications

Function Range Resolution Accuracy
AC Current 0.004A – 600A 4mA ±(2.5% + 8 Digits)
DC Voltage  0.001V – 600V 1mV ±(0.5% + 3 Digits)
AC Voltage  0.001V – 600V 1mV ±(1% + 3 Digits)
Resistance 0.001K? – 40M? 0.001k? ±(0.5% + 3 Digits)
Frequency 0.001Hz – 100kHz 0.001Hz ±(0.1% + 2 Digits)
True RMS Measurements ACV, ACA
AC Bandwidth 40Hz-1kHz
Digital Display 4000
Non-Contact Voltage (NCV) Yes
Overrange Indication Yes
Continuity Yes
Jaw Size 25mm
Peak Hold Yes
Back Light Yes
Enclosure ABS Moulding
Low Battery Indication Yes
Batteries 2 x AAA
Weight 172g
Dimensions 172 x 64 x 32mm
Safety Specs IEC61010-1 CAT IV 300V

Downloads

Additional Information

Device Clamp Meter
Type 600A AC | True RMS
