Product Details
AC Voltage Detector LED 100-1000VAC 50/60Hz
AC Voltage Detector LED
Overview

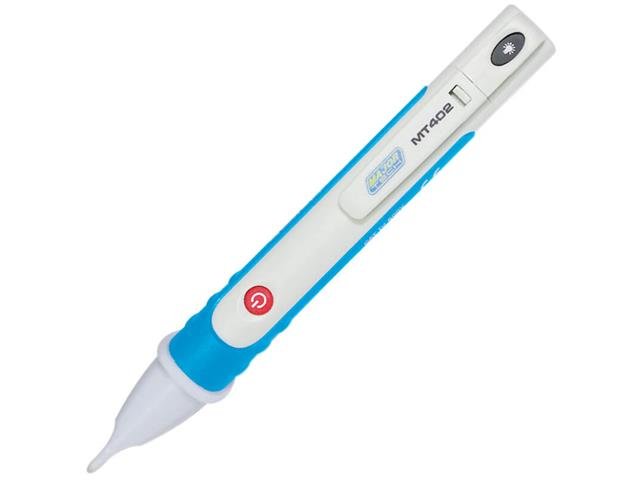

The MT402 is a 1000V AC Voltage Detector ideal for checking the presence of voltage from 50V to 1000V. Suitable for outlets or against wire insulation testing, this noncontact AC Voltage Detector has a switch to turn the unit on and a Green LED indicates there is power and the batteries are ok. The Red LED and an audible sound indicates the presence of voltage. A great feature is the built-in flashlight.
Features
- 50V – 1000V AC
- Easy to use just touch the tip to an outlet or cord, when it glows red the tip will indicate there is voltage in the line
- Audible green light that indicates voltage detection is on
- Detects voltage without metallic contact
- All outer surfaces are non-conductive for safety
- Built-in LED flashlight
- Pocket size
Specifications
| Function | Range |
| Power On Indicator | High Intensity Green LED |
| Flashlight | Yes |
| Non-Contact Voltage (NCV) | Yes |
| AC Voltage | 50V – 1000V |
| Frequency | 50/60Hz |
| Voltage Detector Visual | Red LED |
| Voltage Detector Audible | Continuous Beep |
| Enclosure | Double moulded |
| Low Battery Indication | Green LED Blinks |
| Batteries | 2 x AAA |
| Weight | 34g |
| Dimensions | 176 x 26 x 25mm |
| Safety Specs | IEC61010-1 CAT IV 600V |
Downloads
Additional Information
| Device | Voltage Detector |
| Type | AC | LED | 100-1000VAC | 50/60Hz |
