Product Details
Voltage Detector 600V AC/Flashlight
Voltage Detector 600V AC/Flashlight
Overview

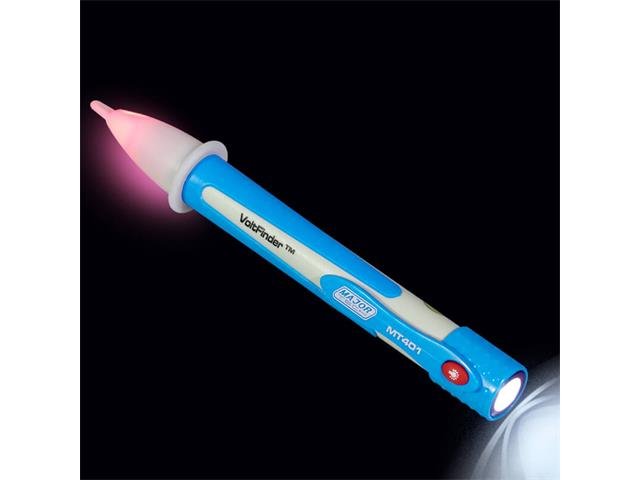

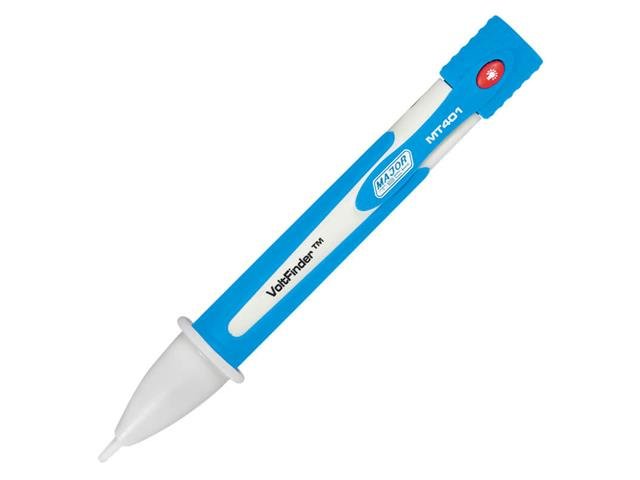

The MT401 is a 1000V AC NCV Voltage Detector capable of detecting the presence of live wires before testing, this pocket-size AC voltage detector features a low-profile tip that can be inserted into outlet receptacles or used to trace along wire insulation to locate breaks. This detector measures from 200 to 1000 VAC with a visual flashing red LED. It has a rugged double moulded housing, and a bright built-in LED flashlight ideal for use in dimly lit areas.
Features
- 200V – 1000V AC
- Easy-to-use just touch the tip to an outlet or cord, when it glows red, it indicates there is voltage in the line
- Detects voltage without metallic contact
- All outer surfaces are non-conductive for safety
- Built-in LED flashlight
- Fits into shirt pocket for convenience
- Dimensions: 176 x 26 x 25mm
- Weight: 48g
Accessories:
- 2 x AAA Batteries
- Instruction manual
General Applications:
The voltage detector is useful for the identification of hot and neutral conductors, finding a break in a wire and detecting the presence of AC voltage at:
- Outlets
- Switches
- Circuit Breakers
- Fuses
Specifications
| Weight |
48g |
|---|---|
| Battery |
2 x AAA batteries |
| Dimensions |
176 x 26 x 25mm |
| Enclosure |
Double moulded |
| Frequency |
50/60Hz |
| AC Voltage |
200V to 1000V |
| Flash Light |
Yes |
| Non-Contact Voltage (NCV) |
Yes |
| Safety Specs |
IEC61010-1 |
| Voltage Detector Visual |
Red LED |
Downloads
Additional Information
| Device | Votage Detector |
| Type | 600V AC/Flashlight |
