LS10-13B03R3

LS10-13B03R3

Dhs. 15.33
Dhs. 15.33
Sale Ausverkauft
Versand wird beim Checkout berechnet

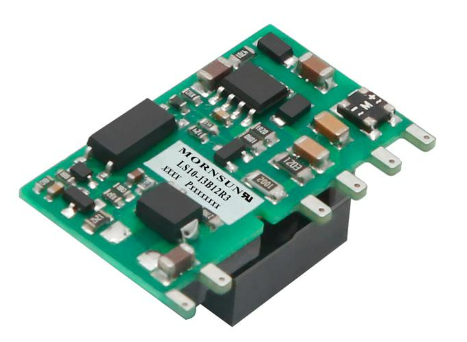

Open Frame Miniature Vertical PCB Switch Mode Power Supply Input: 85 ~ 305 VAC/100 - 430 VDC. Output 3,3VDC @ 2A



OPEN FRAME MINIATURE VERTICAL PCB SWITCH MODE POWER SUPPLY

Overview

LS10-13BxxR3 series is one of Mornsun’s highly efficient green power AC-DC Converter series. They feature wide input range acceptingeitherAC or DC voltage, high reliability, low power consumption and Class II reinforced insulation. All models are particularly suitablefor industrial control, electric power, instrumentation and smart home applications which have high requirement for dimension and don’t havehighrequirement on EMC. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this data sheet


Feature

  • Ultra-wide 85 - 305VAC and 100 - 430VDCinput voltagerange
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range -40℃to+85℃
  • Multi application, flexible layout
  • Compact size, high power density, green power
  • No-load power consumption as low as 0.1W
  • Output short circuit, over-current, over-voltage protection
  • Designed to meet IEC/EN61558, IEC/EN60335 standards
  • IEC/EN/UL62368 safety approval

Device AC/DC Converter
Type Open Frame | Miniature Vertical | PCB | Switch Mode
Size 32.00 x 17.20 x 15.05 mm

Datasheet Download
