Product Details

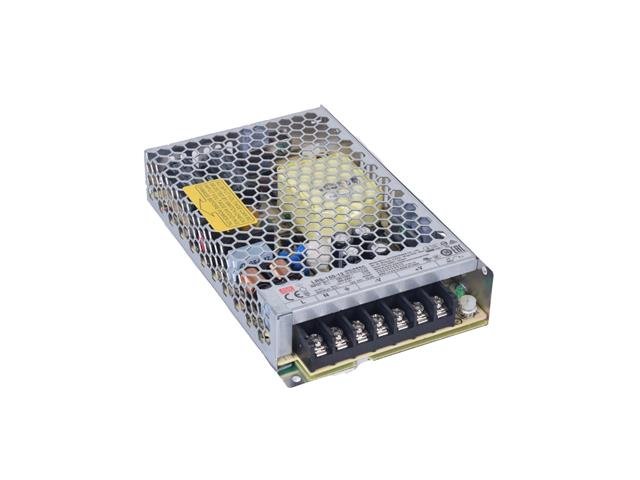

Meanwell Metal Case Switch Mode Power Supply Input: 85~264Vac, Output 12Vdc @ 12.5A 150W, Voltage Adjustable Range:10.02~13.8VDC, Ripple & Noise:150mVp-p, 159x97x30mm, 0,48kg
Metal Case Switch Mode Power Supply
Specifications
|
Number of Outputs
|
1
|
|
Voltage - Input
|
85 ~ 132 VAC, 170 ~ 264 VAC, 240 ~ 370 VDC
|
|
Voltage - Output 1
|
12V
|
|
Current - Output 1
|
12.5 A
|
|
Power (Watts)
|
150W |
|
Applications
|
Household Appliances, ITE (Commercial)
|
|
Voltage - Isolation
|
4 kV
|
|
Efficiency
|
87.5%
|
|
Operating Temperature
|
-30°C ~ 70°C (With Derating)
|
|
Features
|
Adjustable Output
|
|
Mounting Type
|
Chassis Mount
|
|
Size / Dimension
|
6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm)
|
Downloads
Additional Information
| Device | Power Supply |
| Type | Metal Case | Switch Mode |
