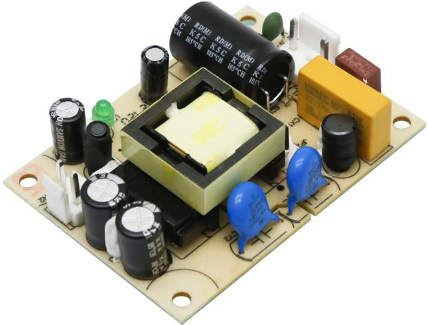

Open Frame PCB Switch Mode Power Supply Input: 85 ~ 264 VAC/100 - 370 VDC. Output 3,3VDC @ 3A (EPS-15-3,3)
OPEN FRAME PCB SWITCH MODE POWER SUPPLY
FEATURE
- Universal 85-264VAC or 100-370VDC input voltage
- 2.5×1.8 inch high power density
- Operating ambient temperature range -25℃ to +70℃
- Output short circuit, over-current & over-voltage protection
- High efficiency, high reliability
- Regulated output, low ripple & noise
- EMI performance meets CISPR32/EN55032 CLASS B
- 2 years warranty
- Safety according to UL/EN60335
ADDITIONAL INFORMATION
| Device |
Power Supply |
| Type |
Open Frame PCB | Switch Mode |
| Input Voltage |
85 ~ 264 VAC/100 - 370 VDC |
| Output |
3,3VDC @ 3A |
| Size |
63.50 x 45.70 x 19.00 mm |
