Product Details
Metal Case Switch Mode Power Supply Input: 85 ~ 305VAC/120 - 430VDC. Output 12VDC @ 6A. Terminal Block Term. 4KVAC Isolation (LRS-75-12) (Metal Case 12V - 6A)
Small Outline Switch Mode Power Supply
Overview

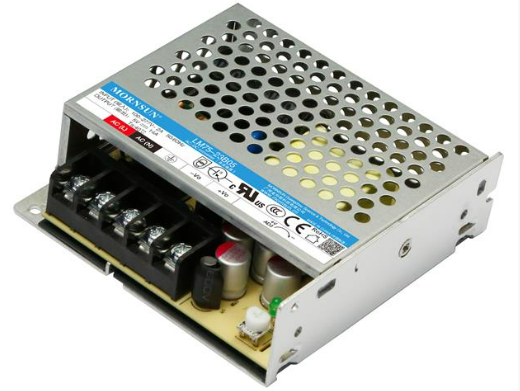

LM75-23Bxx series is one of Mornsun’s enclosed AC-DC switching power supply. It features universal AC input and at the sametimeacceptsDC input voltage, cost-effective, low no load power consumption, high efficiency, high reliability and double or reinforcedinsulation. Theseconverters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, EN61558, GB4943standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart homeetc
Feature
- Universal 85 - 305VAC or 120 - 430VDCInput voltage
- Accepts AC or DC input (dual-use of sameterminal)
- Operating ambient temperature range: -30℃to+70℃
- Low standby power consumption, highefficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltageprotection
- Over-voltage class Ⅲ
- Operating altitude up to 5000m
Downloads
Additional Information
| Device | Power Supply |
| Type | Small | Outline | Switch Mode |
| Size | 99.00 x 97.00 x 30.00 mm |
