Product Details

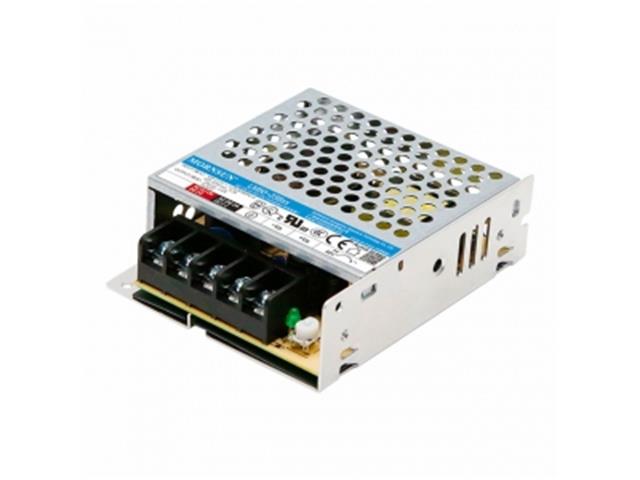

Metal Case Switch Mode Power Supply Input: 85 ~ 305VAC/120 - 430VDC. Output 24VDC @ 2,2A. Terminal Block Term. 4KVAC Isolation (LRS-50-24) (Metal Case 24V - 2,2A)
Metal Case Small Outline Switch Mode Power Supply
Feature
- Universal 85 - 305VAC or 120 - 430VDC Input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30℃ to +70℃
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- IEC/EN/UL62368, EN60335, EN61558, GB4943 safety approved
- Over-voltage class Ⅲ (designed to meet EN61558)
- Operating altitude up to 5000m
Downloads
Additional Information
| Device | Power Supply |
| Type | Metal Case | Small Outline | Switch Mode |
