Product Details

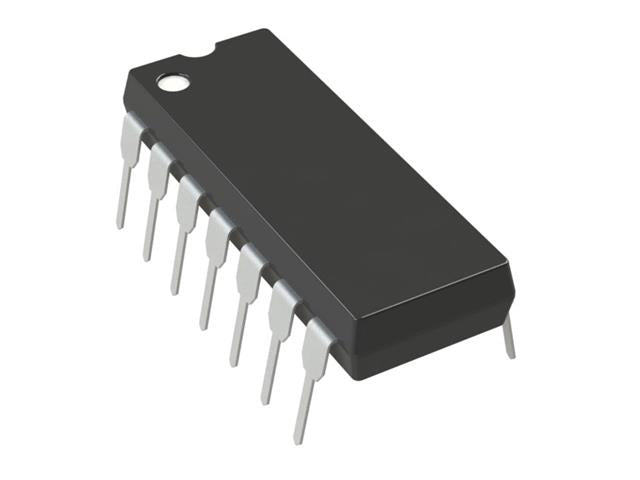

Comparator Differential H-SPD 14PD
Specifications
|
Type
|
Differential
|
|
Number of Elements
|
2
|
|
Output Type
|
Complementary, TTL
|
|
Voltage - Supply, Single/Dual (±)
|
±5V ~ 15V
|
|
Voltage - Input Offset (Max)
|
5mV @ 5V
|
|
Current - Input Bias (Max)
|
10µA @ 5V
|
|
Current - Quiescent (Max)
|
5mA, 10mA, 20mA
|
|
Propagation Delay (Max)
|
20ns
|
|
Operating Temperature
|
0°C ~ 70°C
|
|
Package / Case
|
14-DIP (0.300", 7.62mm)
|
|
Mounting Type
|
Through Hole
|
|
Supplier Device Package
|
14-PDIP
|
Downloads
Additional Information
| Device | IC |
