Product Details
Metal Case Small Outline Switch Mode Power Supply Input: 180 ~ 264VAC (Switch)/240 - 370VDC. Output 15VDC @ 14A. Terminal Block Term.

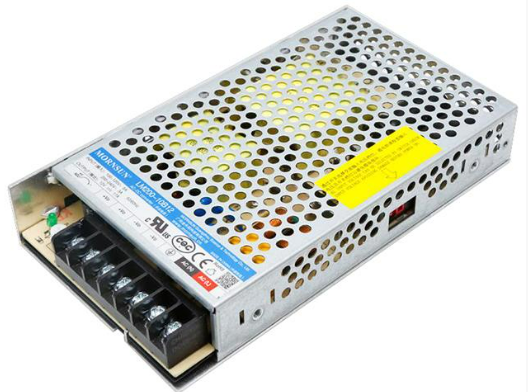

Small Outline Switch Mode Power Supply
Overview
LM200-10B15 is one of Mornsun’s enclosed AC-DC switching power supply. It features selectable AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency and high reliability. These power supply offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc
Feature
- Selectable AC input range: 90 ~ 132VAC/180 ~ 264VAC
- DC input range: 240 ~ 373VDC(Switch in position of 230)
- Ultra low standby power consumption: < 0.75W @230VAC
- Operating ambient temperature range: - 30℃ ~ +70℃
- Compact size with 1U low profile
- LED indicator for power on
- Output short circuit, over-current, over-voltage, over-temperature protection
- Safety according to IEC/EN/UL62368, EN60335, GB4943
- Withstand 300VAC surge input for 5s (Switch in position of 230)
- Operating altitude up to 5000m
Specifications
| Type | Enclosed Type Single Output |
| Output Power | 210W |
| Series | LM200-10B |
| Part Number | LM200-10B15 |
| Mechanical Form | Enclosed |
| IP Level | Non-Waterproof |
| Output Voltage | 15V |
| Output Current | 14A |
Downloads
Additional Information
| Device | Power Supply |
| Type | Small Outline | Switch Mode |
