DIN Rail Plastic Case Switch Mode Power Supply Input: 90 ~ 264VAC/120 - 370VDC. Output 12VDC @ 7,5A 4KVAC Isolation (HDR-100-12)
PLASTIC CASE SWITCH MODE POWER SUPPLY
OVERVIEW

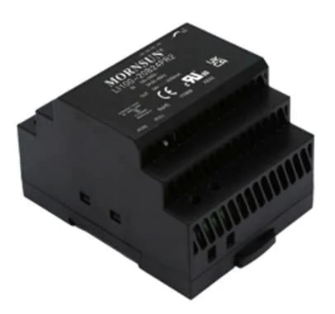

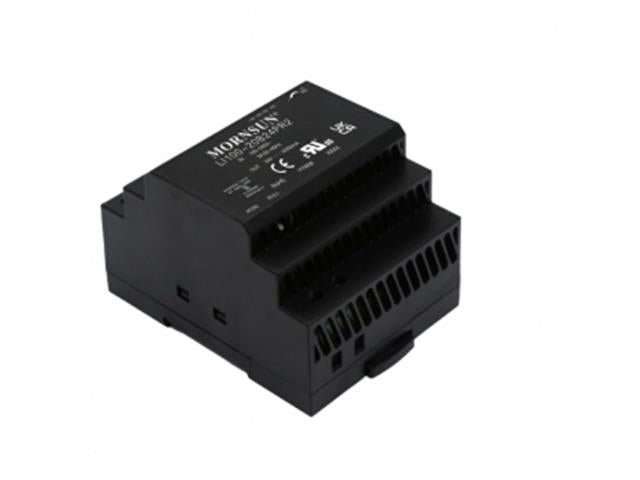

LI100-20BxxPR2 is Mornsun’s AC-DC converter featuring a cost-effective, energy efficient solution for standard DIN-rail mounting. The products offer a high level of stability and immunity to noise, compliant with international IEC62368 standards for EMC are safety approved to IEC/EN61000-4, CISPR32, EN55032, UL62368, IEC62368 and EN62368. These light weight AC-DC converters also have an extremely compact design for space saving and are ideal for applications such as industrial control equipment machinery and all kinds of applications in a harsh environment.
FEATURE
- Universal 85 - 264VAC or 120 - 370VDC Input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -40℃ to +70℃
- High I/O isolation test voltage up to 4000VAC
- Industrial product technology design
- Over-voltage class III (Designed to meet EN61558 safety standards)
- Low standby power consumption, high efficiency
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- EN62368 safety approved
ADDITIONAL INFORMATION
| Device | Power Supply |
| Type | Plastic Case | Switch Mode |
| Input Voltage | 90 ~ 264VAC/120 - 370VDC |
| Output | 12VDC @ 7,5A |
| Size | W-70mm x H-93mm x D-58mm |
