Product Details
DMX512 RGB Decoder : Input Voltage 12 - 24VDC. 4 Channels - 8A/Channel (16A Maximum Total For The Decoder)

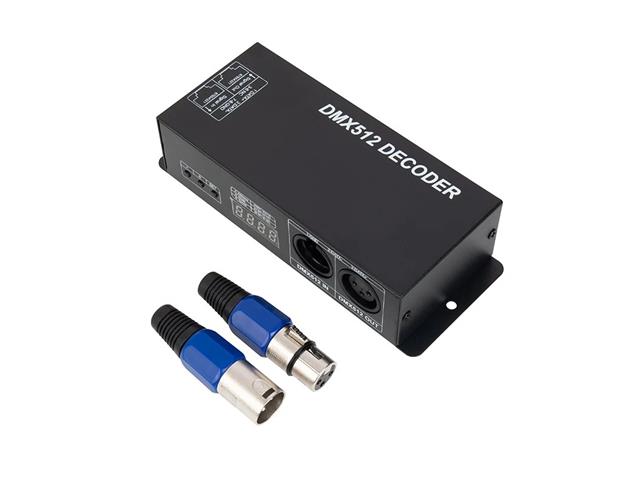

DMX512 RGB Decoder
Overview
The 4-channel LED DMX Decoder translates DMX512 signals to single-color, tunable white, RGB, or RGBW LED strip lights and fixtures. It can control up to 4 separate constant voltage single-color LED products or a single RGBW light bar or flexible strip light. Run the decoder under DMX512 digital control signals using the RJ45 or XLR3 input/output interfaces. For manual use, set the starting address of the driver using the DIP switches. Connect up to 8 amps per channel- 16 amps maximum for decoder. The decoder can control a maximum load of 180W using 12 VDC or 360W using 24 VDC. Includes one male and one female XLR3 connector.
Feature
- 1-4 channel operation
- RJ45 and XLR3 inputs/outputs
- Max 8A current per channel (16A total for the decoder)
Specifications
- RJ45 Input/Output
- XLR3 Input/Output
- 12 VDC: 96W per channel, 180W total
- 24 VDC: 96W per channel, 384W total
Additional Information
| Device | Decoder |
| Type | DMX512 | RGB |
