Product Details

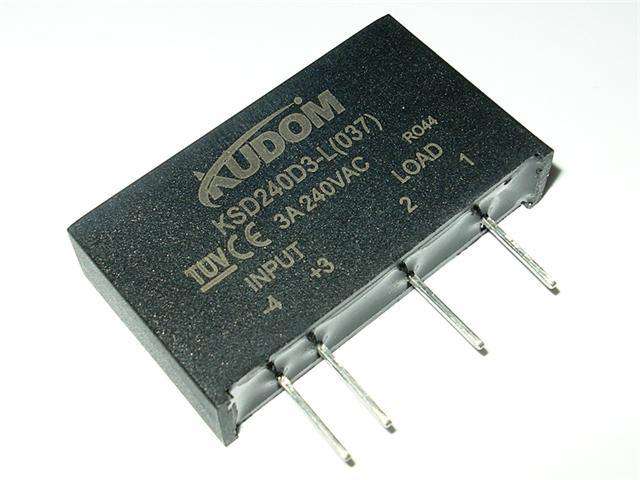

240VAC 3A Single Phase SIL Solid State Relay with 4~15VDC Control Voltage, Zero Crossing Mode
Overview
Features
Specification
- Input Circuit :
- Control Voltage Range : 4~15VDC
- Minimum Turn-On Voltage : 4VDC
- Minimum Turn-Off Voltage : 1VDC
- Maximum Input Current : 25mA
- Output Circuit
- Load Voltage Range : 48~280VAC
- Transient Overvoltage : 600Vpk
- Load Current Range : 0.1~3A
- Maximum Turn-On Time : 1/2AC Cycle + 1ms
- Maximum Turn-Off Time : 1/2AC Cycle + 1ms
- Maximum Surge Current [@10ms] : 120A
- Dielectric Strength : ≥4000Vrms [Input/Output]
