Product Details

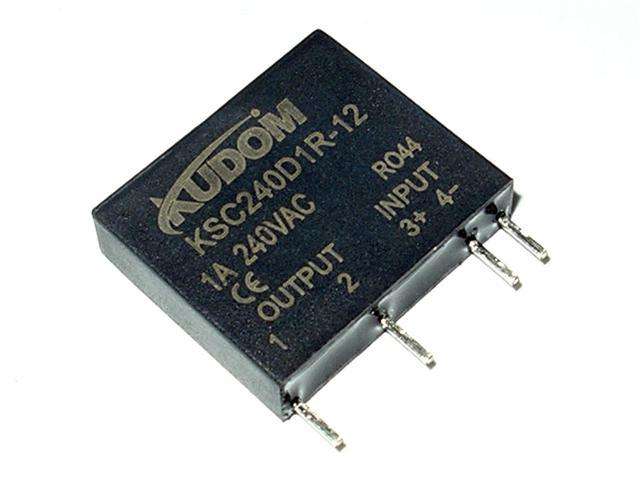

240VAC 1A Single Phase SIL Solid State Relay with 12VDC Control Voltage and Random turn On
Overview
Features
Specification
Â
- Input Circuit :
- Control Voltage Range : 9.6~14.4VDC
- Minimum Turn-On Voltage : 9.6VDC
- Minimum Turn-Off Voltage : 1VDC
- Maximum Input Current : 25mA
- Output Circuit
- Load Voltage Range : 48~280VAC
- Transient Overvoltage : 600Vpk
- Maximum Surge Current [@10ms] : 25A
- Maximum Turn-On Time : 1ms
- Maximum Turn-Off Time : 1/2AC Cycle + 1ms
- Dielectric Strength : ≥2500Vrms [Input/Output]
