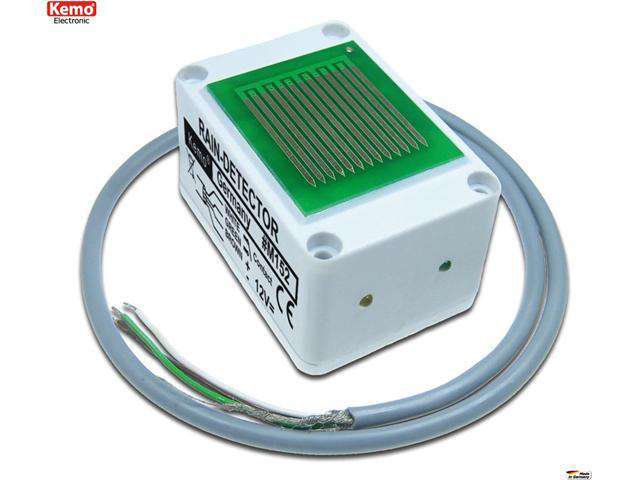

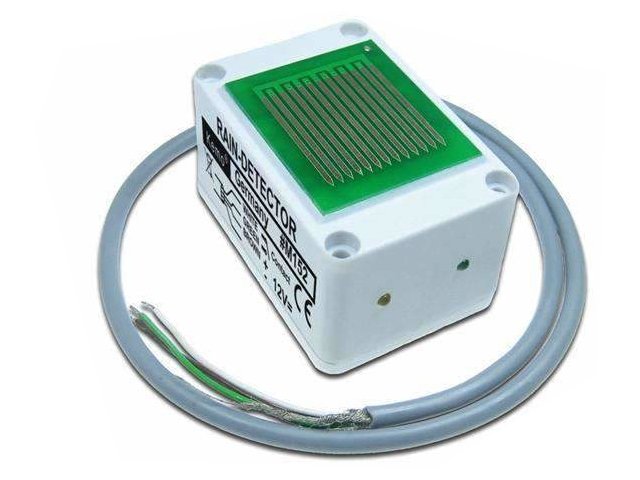

KEMO M152

If the sensor plate gets into contact with rain or slushy snow / hail, it switches on a relay. Sun blinds may be retracted with that, skylights may be closed or a simple rain alarm can be given. The automatically heated surface of the sensor prevents any freezing or wetting of the sensor surface. 2 installed LEDs indicate the function. Waterproof-encapsulated.

• Operating voltage : 12VDC
• Current consumption without / with heating : 8 ~ 120 mA
• Relay contact : 1 x ON, max. load 25V 2A
• Sensor heating : automatically in case of contact with rain
• Light-emitting diode 1 : indication that the rain sensor works
• Light-emitting diode 2 : indication that rain is reported and the relay has switched on
• Duty cycle of the relay : as long as the sensor is wet
• The module is Encapsulated Waterproof
• Active sensor surface, gold-plated : 29 x 30 mm
• Dimensions : 64 x 44 x 36 mm
