Product Details

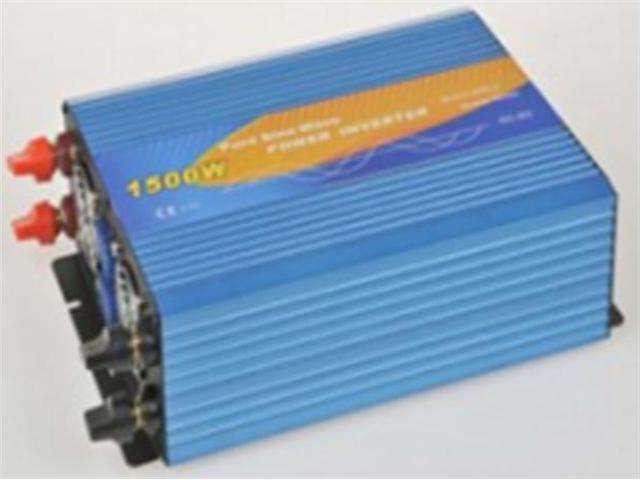

1500W Pure Sine Wave Power Inverter with 24VDC Input and 220VAC Output
Overview
Features
Specification
- AC Output
- Continuous Power : 1500W
- Surge Power : 3000W
- Max Constant Power Start : 1800W for 10 seconds
- Output Waveform : Pure Sine Wave (THD < 3%)
- Output Frequency : 50Hz±0.1%
- AC Output Voltage : 200~240VAC
- DC Iutput
- DC Input Voltage : 24VDC
- Voltage Range : 20V~30V
- Low Voltage Alarm : 21V±1V
- Low Voltage Shut down : 20V±1V
- Over Voltage Shut down : 30V±1V
- Over load shut down : 1200W over 10 seconds
- Converting Max. Efficiency : 90% (Full Loading) / 95% (1/3 Loading)
- No Load Consumption : < 0.6A
- Protection
- Over Thermal : Shut Off Output Automatically, Temperature >75°C
- Short Circuit Protection : Reverse Polarity (External Fuse)
- Cooling Fan automatically run : Temperature ≥45°C
- LED Indicator Light : Inverter, Fault
- Working Temperature : -10 ~+50°C
- Working Humidity : 20%~90% RH Non-Condensing
- Storage Temperature Range -30 ~+70°C
- Dimensions : 405x286x168mm
- Weight : 5.5kg
