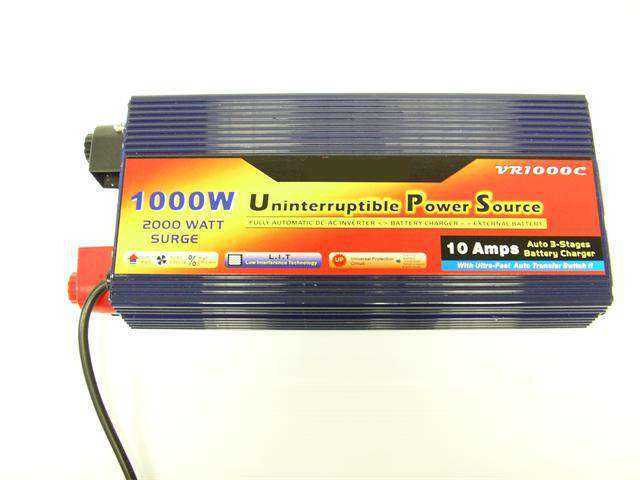

Power Invertor • 1000W • Input : 12V • Output : 220VAC • with Built in Charger
Overview
Features
- This Uninterruptible Power Source (UPS) is an electronic device that can bypass AC mains and charge up your battery when AC mains is good
- It will automatically convert DC power from a 12V battery (not included) to standard household AC power when mains failure (function as a DC-AC power inverter)
- Since these UPSs apply the high frequency power conversion technology, small ferrite transformers are used instead of the bulky transformers in older UPSs
- The AC output waveform of the VR-series UPS (Inverter mode) is known as “modified sine wave”
- It is a waveform that has characteristics similar to the sine wave shape of utility power
- This type of waveform is suitable for most AC loads, including linear and switching power supplies used in electronic equipment, transformers, and motors
- The modified sine wave produced by the inverter has an RMS (root mean square) voltage of 230 volts, which is the same as standard household power
Specification
- Output Connection : Dual Universal AC Receptacles
- Output Voltage Output AC : 230 volt AC RMS 50 Hz
- Output Waveform : Modified Sine Wave (Inverter)
- Output Waveform : Pure Sine Wave (Bypass)
- Output Frequency : 50 or 60Hz
- Output Power : 1000W
- Surge Power : 2000W
- Max. Efficiency : >90%
- Input Voltage Range : 10.5 to 15.5 volt DC
- Low Voltage Alarm : 10.6 volt DC
- Low Voltage Shutdown : 10.0 volt DC
- Charge control : 3-stages
- Compatible battery types : Wet/gel
- Charger nominal voltage : 13.8V
- Charger charge rate : 10A
- Max. Charge rate : 12A
- Start T Motor, Air-con. etc : Yes
- Protection (Thermal,Earth Fault,Battery Overload, and Short Circuit Protection.) : Yes
- Input Fuse : Internal
