4G LTE Network
Operated on the 4G phone network to transmit image and video signals wirelessly

15000mAh Rechargeable Battery
DC 5V Power Supply Rechargeable Battery Power

Siren & Spotlight
Once an intruder is detected, the camera’s spotlights and siren will be triggered or manually activated to warn off the would-be criminal.

PIR+Human Detection
Discerns people and motion detection. More accurate alerts.

Low-Battery Notifications
Informs you when battery level goes down to 20%,10%, so you can charge it in time.

Two-way Talk
Using variable sound when taking real-time talk with people in front of the camera

Auto Tracking
Track moving targets in time.

Type-C
Type-C interface with better adaptability.

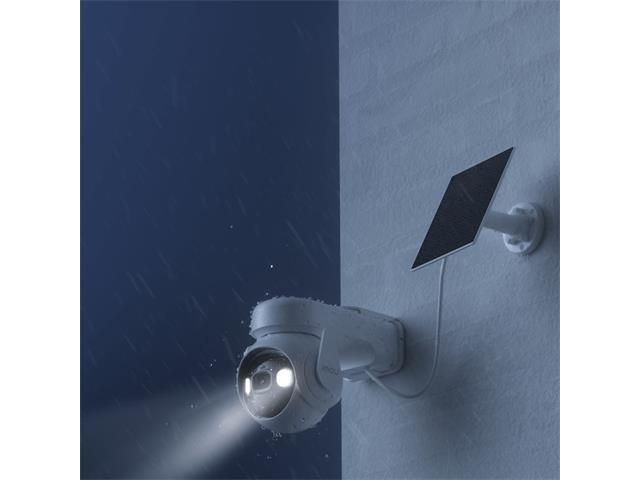

IP66
Weatherproof for outdoor conditions

Flexible and Secure Storage
insert a micro SD card for local storage (up to 256GB).

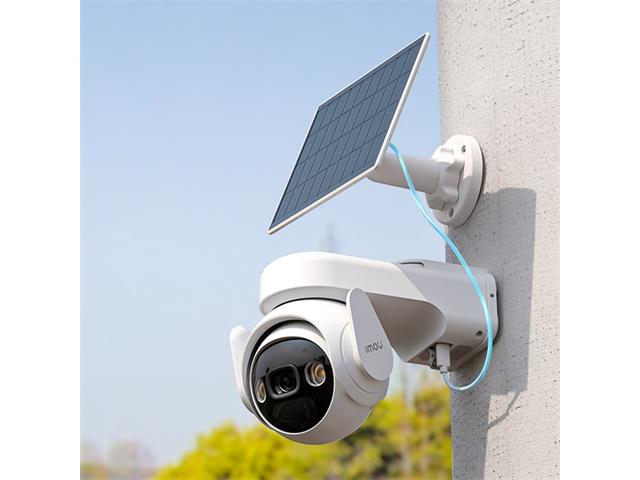

Works with Solar Panel
Works with Imou Solar Panel for battery charging

Camera

• 1/2.8” Progressive CMOS
• 3MP(2304*1296)
• Night Vision: 20m(23ft) Distance
• 3.6mm Fixed Lens
• Field of View : 88°(H), 45°(V), 107°(D)，0~330° Pan, 0~90° Tilt
• 15000mAh Rechargeable Battery

Video & Audio

• Video Compression : H.265/H.264
• Up to 15fps Frame Rate
• 8x Digital Zoom
• Two-way Audio

Notice Management

• Motion Detection
• Human Detection
• Configurable Region
• Performance mode

Network

• LTE FDD： B1/3/5/7/8/20/28
• LTE TDD： B38/40/41
• Transmission Data

  • LTE FDD（Mbps)：10.3(DL)/5.1(UL)
  • LTE TDD（Mbps)：9.1(DL)/3.1(UL)
• Imou App: iOS, Android

Auxiliary Interface

• Built-in Mic & Speaker
• Power on / off Button
• Reset Button
• Micro SD Card Slot (up to 256GB)

Storage

• Local Storage: SD Card（Up to 256GB）
• Cloud Storage: Imou Subscription Plan

General

• DC 5V 2A Power / Imou Solar Panel Supply
• Power Consumption:< 3.5W
• Operating Temperature:-20℃~+50℃ (-4℉~122℉)
• Charging Temperature:-0℃~+45℃ (32℉~112℉)
• Camera Dimensions: 117*110*142 mm (4.64*4.33*5.59 inch)
• Camera Weight: 737g (1.62 lb)
• CE,IC

Solar Panel

• Max. power: 3 W
• Nominal voltage (Vmp): 6 V
• Nominal current (Imp): 0.5 A
• Output cable: USB-C (4 m)
• Color: black-white

Box content

• 1x Camera
• 1 x Power Cable (1m)
• 1x Mounting Template
• 4x Screws
• 1x Quick Start Guide
• 1x Mouting Bracket
• 4x Expansion Screws
• 1x FSP12 Solar Panel

1. Datasheet - IMOU IPC-K9EP-3T0TE 3.6MM KIT
