Product Details
Enclosure IP65 IK09 Steel Plated 2mm Thick 1200 x900 x285mm Argenta Series
Enclosure IP65 IK09 Steel Plated 2MM Thick 1200X900X285MM
Specifications
Characteristics:

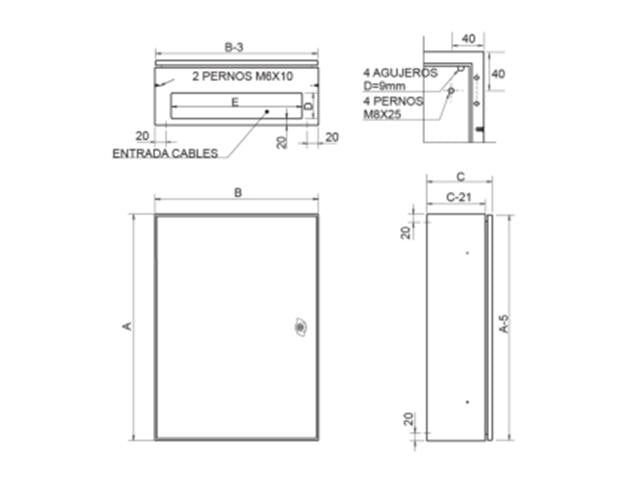

- Dimensions cabinet : (AxBxC) 1200x900x300 mm
- Installation : Surface
- Type of door : Single opaque door
- Locking : 5-mm double-bit lock - One 3-point lock
- Finish : Coated with hardened epoxy-polyester paint, embossed, 80-120 ?
- Colour : RAL 7035 grey
- Mounting plate : With flat mounting plate. 2-mm galvanised sheet steel
- Weight (Kg) : 67
- Materials : Cold-rolled steel EN10130+A1
Technical data:
- Degree of protection : IP66 / NEMA 1, 12, 4
- Resistance to impact : IK10
- Ambient temperature range : -25ºC / +40ºC
- Maximum operating voltage : 1000 V AC
Downloads
Additional Information
| Device | Enclosure |
| Type | IP65 | IK09 | Steel Plated | 2MM Thick | 1200X900X285MM |
| Highlights | Argenta Series |
| Dimensions | 1200 X 900 X 285mm |
