Product Details

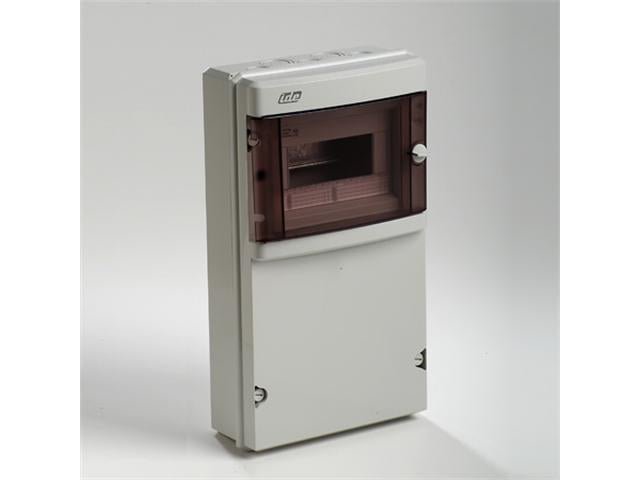

Enclosure for Sockets and Automatic Switches • IP-55 • 550x295x148mm
Feature(s)
1x12 modules DIN rail
References with Earth and Neutral Bars
References with Earth and Neutral Bars
Additional Information
| Code | 13802 |
| Reference | CSG13PT/R |
| Group | Industrial Enclosures |
| Series | Star |
| Device | Enclosure for Sockets and Automatic Switches |
| Type | Grey with Transparent Window |

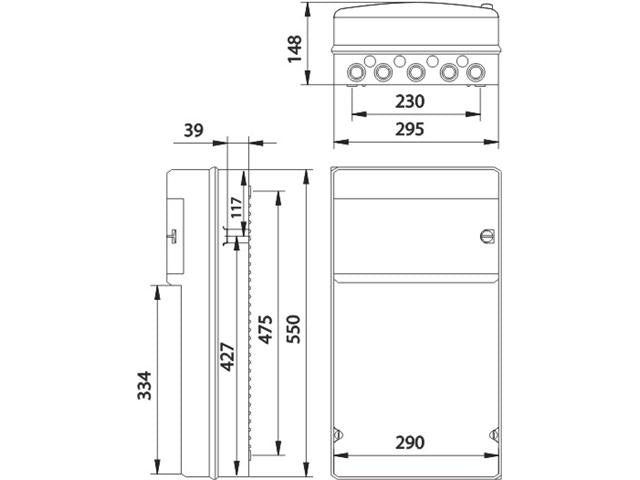

| Size | 550mm x 295mm x 148mm |
| Degree of Protection | IP-55 |
| Resistance to Impact | IK08 |
| Auto- Extinguishing Degree | HJB (UL94) |
| Test Of Resistance to Glow Wire | 650°C |
| Ball Pressure Test | 70°C |
