Product Details

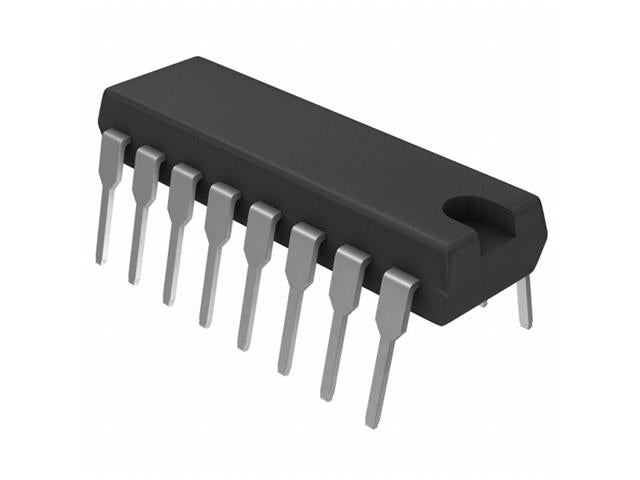

HV Switch Mode Controller 10V-450V DIP16
Specifications
|
Output Type
|
Transistor Driver
|
|
Function
|
Step-Up/Step-Down
|
|
Output Configuration
|
Positive
|
|
Topology
|
Flyback
|
|
Number of Outputs
|
1
|
|
Output Phases
|
1
|
|
Voltage - Supply (Vcc/Vdd)
|
10V ~ 450V
|
|
Frequency - Switching
|
3MHz
|
|
Duty Cycle (Max)
|
49.4%
|
|
Synchronous Rectifier
|
No
|
|
Clock Sync
|
No
|
|
Control Features
|
Enable, Frequency Control, Reset
|
|
Operating Temperature
|
-55°C ~ 125°C (TJ)
|
|
Mounting Type
|
Through Hole
|
|
Package / Case
|
16-DIP (0.300", 7.62mm)
|
|
Supplier Device Package
|
16-PDIP
|
Additional Information
| Device | IC |
