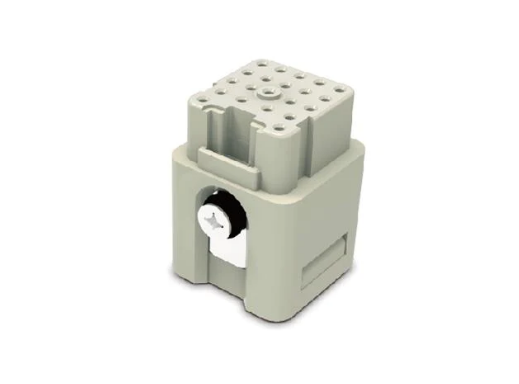

The Han Q series female insert is a component of a heavy-duty power connector system designed for robust applications.
This particular insert features 21 positions and utilizes crimp termination for secure electrical connections. It has a current rating of 6.5 A and a voltage rating of 50 V. The female insert is constructed from polycarbonate (PC) and is compatible with a 3A size housing/hood, which is also female.
It is part of the broader category of power connectors and is identified by the part number alias 9120213101. This specific 12-pole version, with screw termination (SCW TERM), is supplied in bulk packaging and weighs approximately 8.280 grams.
Article No. 130 021 020 0001
Industry No. 09120213101
Size: 3A
Series: Q21/0 (C)
Datasheet HQ-021-FC
SPECIFICATIONS
| Inserts | |
| Number of contacts | 21 |
| Electrical data acc. to EN 61 984 | |
| -Rated current | 6.5A |
| -Rated voltage | 50V |
| -Rated impulse voltage | 0.8KV |
| -Pollution degree | 3 |
| Rated voltage AC | 50V |
| Rated voltage DC | 120V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-silver plated |
| hard-gold plated | |
| Contact resistance | ≤3mΩ |
| Crimp terminal | |
| ---mm2 | 0.09-0.52mm2 |
| ---AWG | 28-20 |
