Product Details

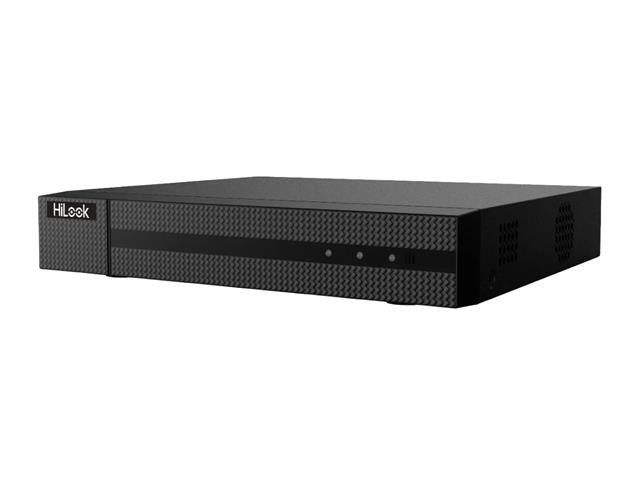

HiLook 8CH 1U NVR H.265+ 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF, 1 SATA Iinterface (up to 8TB Capacity), 1xRJ45 10/100Mbps, 2×USB2.0, VGA, HDMI Video Output at up to 4K Resolution, 12VDC 1.5A
8-ch 1U 4K NVR
Feature(s)
- Up to 8-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
- Up to 80 Mbps incoming bandwidth
Specifications
Motion Detection 2.0
- Human/Vehicle Analysis : 4-ch
Video and Audio
- IP Video Input : 8-ch
- Incoming Bandwidth : 80 Mbps
- Outgoing Bandwidth : 80 Mbps
- HDMI Output : 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
- VGA Output : 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output Mode : HDMI/VGA simultaneous output
- Audio Output : 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1kΩ)
Decoding
- Decoding Format : H.265+,H.265,H.264+,H.264
- Recording Resolution : 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Decoding Capability : 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps);5 x1080P
- Synchronous playback : 8-ch
Network
- Remote Connection : 32
- Network Protocol : TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface : 1 RJ-45 10 /100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
- SATA : 1 SATA interface
- Capacity : Up to 8 TB capacity for each disk
- USB Interface : 2 × USB 2.0
General
- Power Supply : 12 VDC, 1.5 A
- Consumption : ≤ 10 W (without HDD)
- Working Temperature : -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity : 10% to 90%
- Chassis : 1U
- Dimension (W × D × H) : 265 × 225 × 48 mm (10.2" × 8.9" × 1.9")
- Weight : ≤ 1 kg (without HDD, 2.2 lb.)
Downloads
Additional Information
| Device | NVR |
| Type | 8-ch | 1U | 4K |
