Product Details
Hikvision Plastic Turret Indoor Camera 2MP 2.8mm Lens, 20m IR, Res:1920×1080, 2D DNR, STD/HIGH-SAT, WDR, (4 signals switchable TVI/AHD/CVI/CVBS), Image Mode: STD/HIGH SAT, 12VDC, Brightness, Sharpness, 3D DNR, Mirror, Smart light, IP67

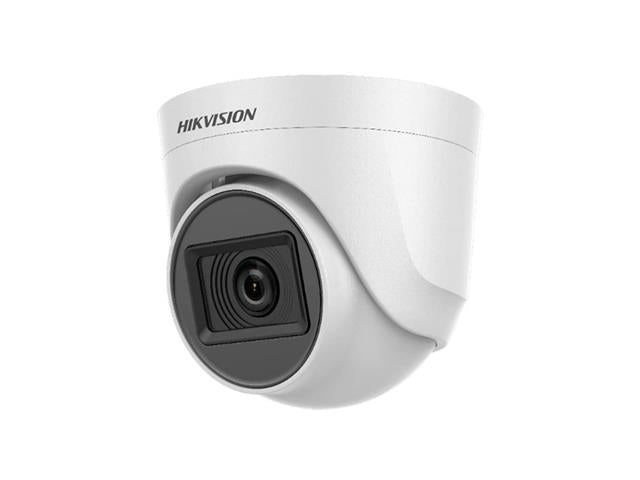

Plastic Turret Indoor Camera
Feature(s)
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 2.8 mm fixed lens
- Up to 20 m IR distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
Specifications
Camera
- Image Sensor : 2 MP CMOS
- Signal System : PAL/NTSC
- Resolution : 1920 (H) × 1080 (V)
- Frame Rate
- TVI: 1080p@25fps/30fps
- AHD: 1080p@25fps/30fps
- CVI: 1080p@25fps/30fps
- CVBS: PAL/NTSC
- Min. Illumination : 0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time : PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
- Lens : 2.8 mm Fixed Lens
- Field of View : 2.8 mm, horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 123°
- Lens Mount : M12
- Day & Night : ICR
- WDR (Wide Dynamic Range) : Digital WDR
- Angle Adjustment : Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Menu
- Image Mode : STD/HIGH-SAT
- AGC : Yes
- Day/Night Mode : Auto/Color/BW (Black and White)
- White Balance : Auto
- AE (Auto Exposure) Mode DWDR, BLC, Global
- Noise Reduction 2D DNR
- Language : English
- Function : Brightness, Mirror, Smart IR, Sharpness
Interface
- Video Output : Switchable TVI/AHD/CVI/CVBS
General
- Operating Conditions : -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
- Power Supply : 12 VDC ± 25%
- Consumption : Max. 3.3 W
- Material : Plastic
- IR Range : Up to 20 m
- Communication : HIKVISION-C
- Dimension : Φ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11")
- Weight : Approx. 195g (0.43 lb.)
Downloads
Additional Information
| Device | Camera |
| Type | Plastic | Turret | Indoor |
