Product Details

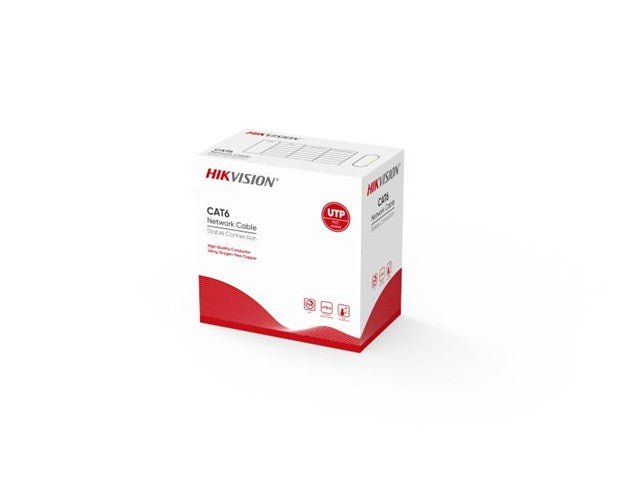

Hikvision Network Cable CAT6 UTP Solid Copper Grey 305m, Conductor:0.55mm, Fire Resistant:No, Sheath Material:PVC, Insulation: HDPE & Diameter:0.98±0.05mm, Drain Wire: No, Quality Verified By Fluke Test
Network Cable CAT6 UTP Solid Copper
Feature(s)
- Full diameter 305 m CAT6 network cable
- Core diameter: 0.55mm
- Excellent transmission performance using solid copper
- Quality verified by Fluke test
- Guaranteed long PoE transmission distance
- Great PVC flame resistance.
Specifications
Accessories
- Category : Cat.6
- Steath printingHIKVISION 4PR 23AWG 75℃ U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS
- Reference standard : ISO/IEC11801,ANSI/TIA-568-C.2,RoHS 2.0
- Fire resistance : No
- Conductor : Solid-Bare Copper (99.95%);0.55±0.005 mm，23 AWG
- Insulation : HDPE;0.98±0.05 mm
- Rip-cord : Yes
- Separator : Yes
Sheath physical properties
- Before aging : Tensile strength ≥ 13.5 Mpa;Elongation ≥ 150%
- Aging period : 100 ℃ × 24h × 10d
- After aging : Tensile strength ≥ 12.5Mpa;Elongation ≥ 125%
- Cold bend : -20 ± 2℃ × 4h，8 × cable O.D,no visible cracks
Electrical Characteristics(20℃)
- 1.0-250.0 MHz impedance : 100 ± 15Ω @ ≤ 100MHz；100 ± 25Ω @ 100-250MHz
- 1.0-250.0 Mhz delay skew : ≤ 45 ns/100 m
- DC resistance : ≤ 9.38 Ω/100 m
- DC conductor resistance unbalance : ≤ 5.0 %
- Package dimension : 400 mm (W) × 400 mm (H) × 240 mm (D)(15.75″ × 15.75″ × 9.45″)12.3 ± 0.5kg
- Cable length : (305 ±1.5) m
- Ambient temperature : -20 ℃ to 75 ℃ (-4℉ to 167℉)
- Operating voltage : 60 V
Sheath
- Thickness : 0.5±0.10 mm
- Material : PVC
- Color : Grey
- Diameter : 6.00±0.30 mm
Downloads
Additional Information
| Device | Cable |
| Type | CAT6 | UTP | Solid Copper | Network |
