Product Details

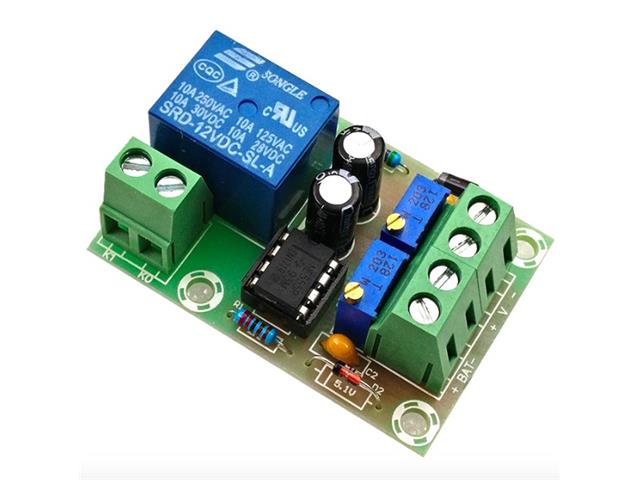

XH-M601 Lithium Battery Charger Control Board, In (13.8-14.8VDC), Out(12VDC)
Battery Charging Control Board
Overview
XH-M601 Battery Charging Control Board 12V Intelligent Charger Power Control Panel Automatic Charging Power
Specifications
- Product model: XH-M601
- Supply voltage: 13.8V-14.8V
- Relay closing voltage: 12.4V
- Relay disconnection voltage: 14.8V
- Voltage error: ±0.1V
- Voltage detection method: DC voltmeter
- Charging type: 12V battery
- Potentiometer adjustment: RP1 RP2 (careful adjustment)
- Product size: 50 x 32 x 18mm (LWH)
RP1: Adjust the battery starting charging voltage (low voltage setting: clockwise high, counterclockwise low) factory value is 12.4V
RP2: Adjust the battery to disconnect the charging voltage (low voltage setting: clockwise high, counterclockwise low) factory default is 14.8V
Package includes:
- 1 x 12V charger power control board
Additional Information
| Device | Control Board |
| Type | Battery | Charging |
