Product Details
Compatible with Arduino 5V/10A 16CH Relay Module with N/O and N/C Contacts with Opto Isolated I/P. (Also for 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL Logic).

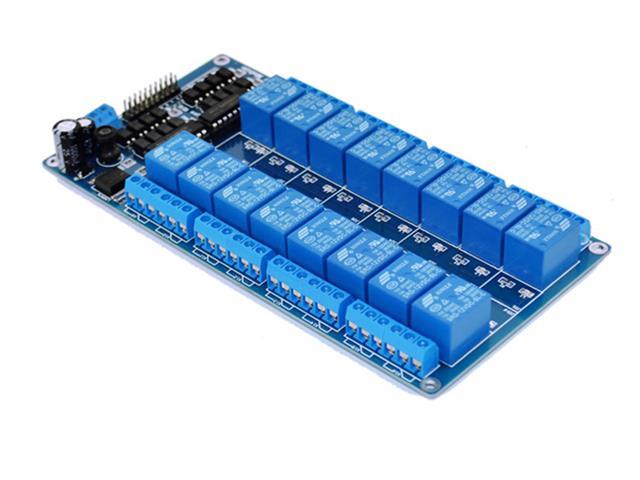

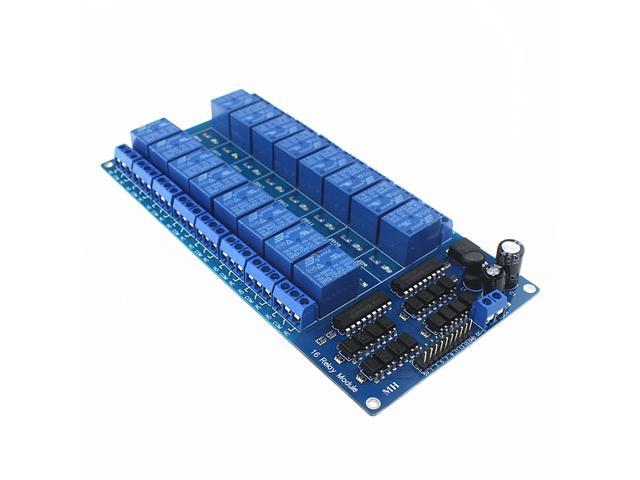

5V/10A 16CH Relay Module
Features
- This is a 5V 16-Channel Relay interface board, Be able to control various appliances, and other equipment's with large current. It can be controlled directly by Micro-controller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).
- 5V 16-Channel Relay interface board, and each one needs 50-60mA Driver Current.
- Equipped with high-current relay, AC250V 10A ; DC30V 10A.
- Standard interface that can be controlled directly by microcontroller.
- Indication LED’s for Relay output status.
- High Level Trigger.
Specifications
- Number of channels : 16
- Supply voltage : 5V DC
- Switched voltage : max. 30V DC, max. 250V AC
- Contact current max. : 10A
- Gross weight : 201.2 g
Additional Information
| Device | Relay Module |
| Type | 5V/10A | 16CH |
