Product Details
2 Channel Motor Driver Module DRV8833. Input Voltage:3V-10V. Single H-Bridge Output Current:1.5A

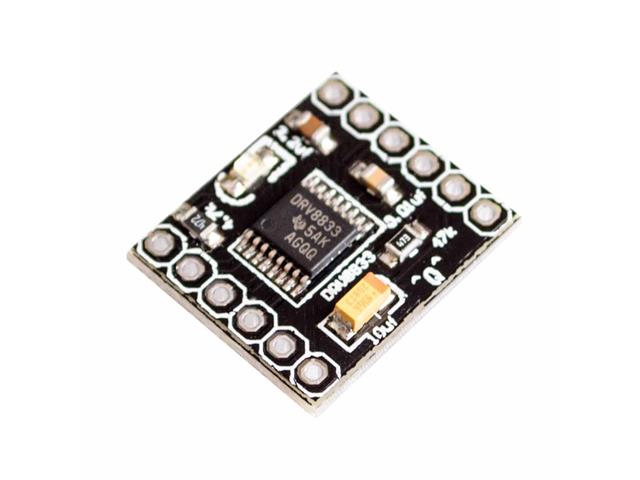

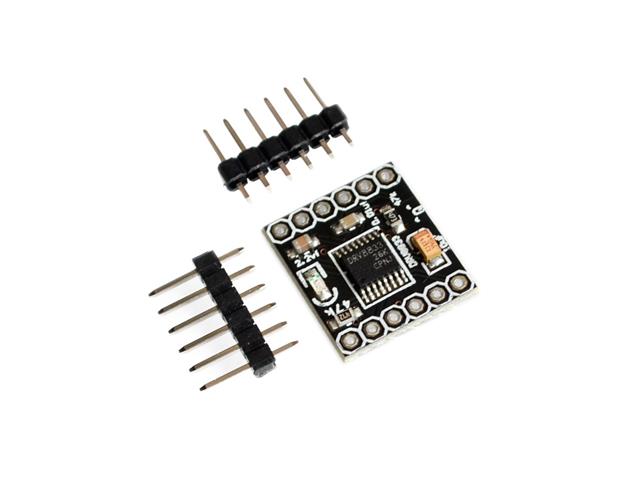

2 Channel Motor Driver Module DRV8833
Features
- Size:18.5*16mm
- Input voltage:3V-10V
- Single H-Bridge output current:1.5A(It can drive two DC motor)
- Overcurrent protection:YES
- Short circuit protection:YES
- Undervoltage lockout:YES
- Overheating protection:YES
- With a low-power sleep mode

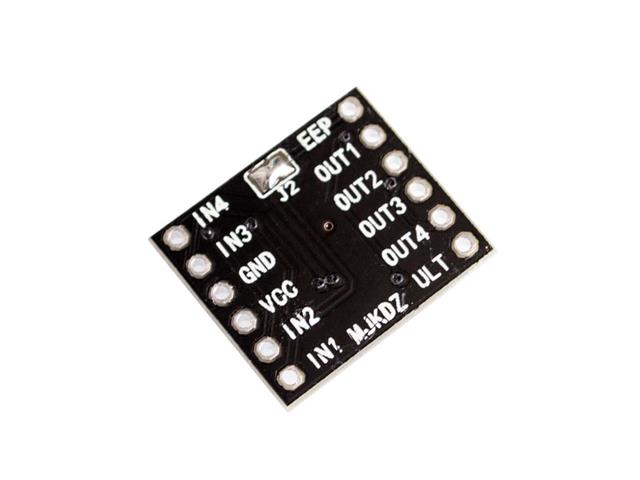

Instructions
- ULT PIN:mode set.Low level is sleep mode
- OUT1,OUT2:1-channel H-bridge controlled by IN1/IN2
- OUT3,OUT4:2-channel H-bridge controlled by IN3/IN4
- EEP PIN:Output protection.Default no need to connect.
- VCC:3-10V
- GND
Additional Information
| Device | Motor Driver Module |
| Type | 2 Channel | DRV8833 |
