HKD BMP180 BAROMETER I2C

HKD BMP180 BAROMETER I2C

Normaler Preis Dhs. 16.52
Normaler Preis Verkaufspreis Dhs. 16.52
Sale Ausverkauft
Inkl. Steuern. Versand wird beim Checkout berechnet
Vollständige Details anzeigen

Product Details

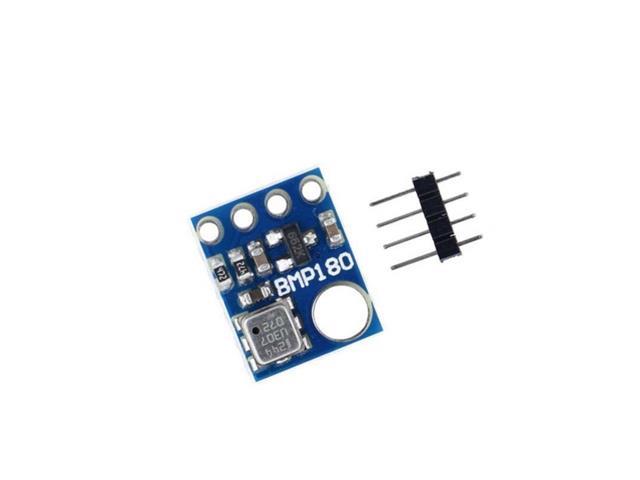

BMP180 I2C Digital Barometric Pressure Sensor Board Module

Digital Barometric Pressure Sensor Board Module

Overview

The BMP180 offers a pressure measuring range of 300 to 1100 hPa with an accuracy down to 0.02 hPa in advanced resolution mode. It’s based on piezo-resistive technology for high accuracy, ruggedness and long term stability. These come factory-calibrated, with the calibration coefficients already stored in ROM. What makes this sensor great is that it is nearly identical to its former rev, the BMP085.

Specifications

  • Size: 13mm x 10mm
  • 1.8V to 3.6V Supply Voltage
  • Max I2C Speed: 3.5Mhz
  • Low power consumption: 0.5uA at 1Hz
  • I2C interface
  • Very low noise: up to 0.02hPa (17cm)
  • Full calibrated
  • Pressure Range: 300hPa to 1100hPa (+9000m to -500m)
  • Package included:

  • 1 x GY-68 BMP180 Sensor Module

Additional Information

Device Board Module
Type Digital | Barometric | Pressure | Sensor
